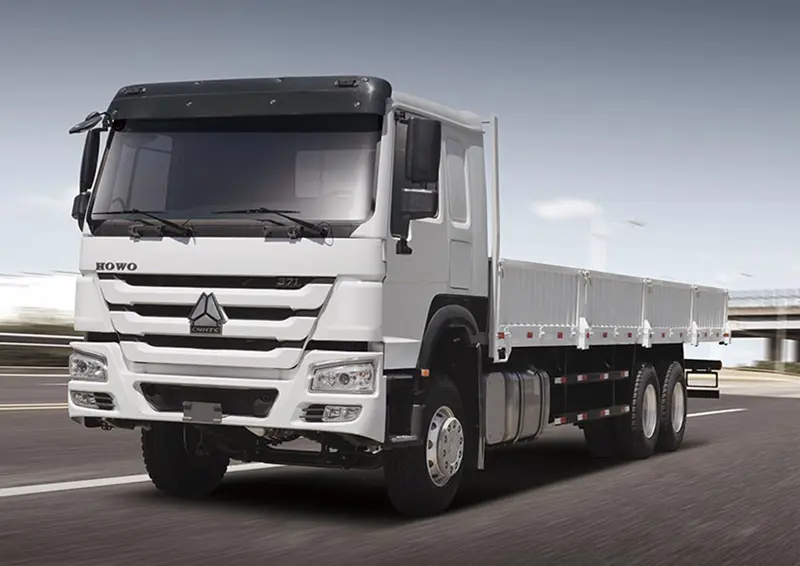

Sinotruk Howo 7 6x4 Cargo Truck

Sinotruk Howo 7 6x4 Cargo Truck

Vehicle type
Cargo Trucks
Model
ZZ1257N4641W
Power(hp)
336
Engine
WD615.69, Euro II
Transmission
HW19710
Displacement
9.726L
Drive type
6x4
Start Order Request
Customer Ratings 4.8 out of 5
Sinotruk Howo 7 6×4 Cargo Truck-4
Sinotruk Howo 7 6×4 Cargo Truck-2

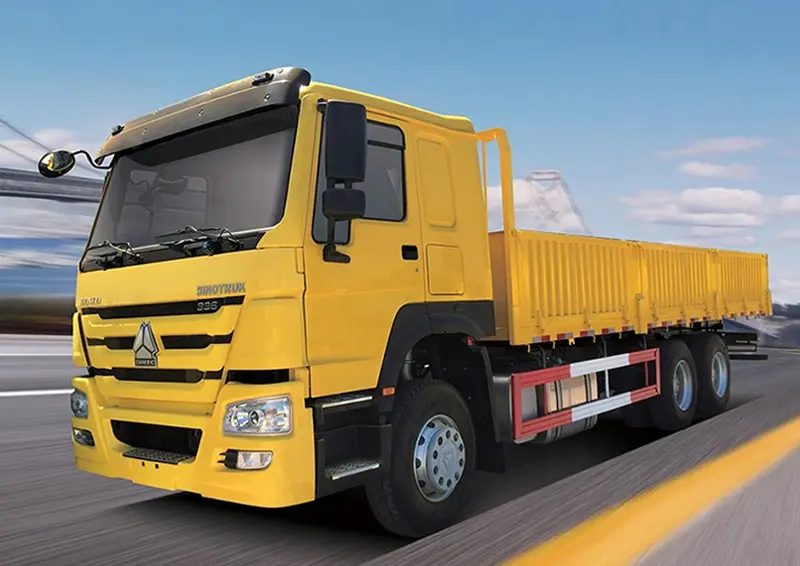

Sinotruk Howo 7 6×4 Cargo Truck-1

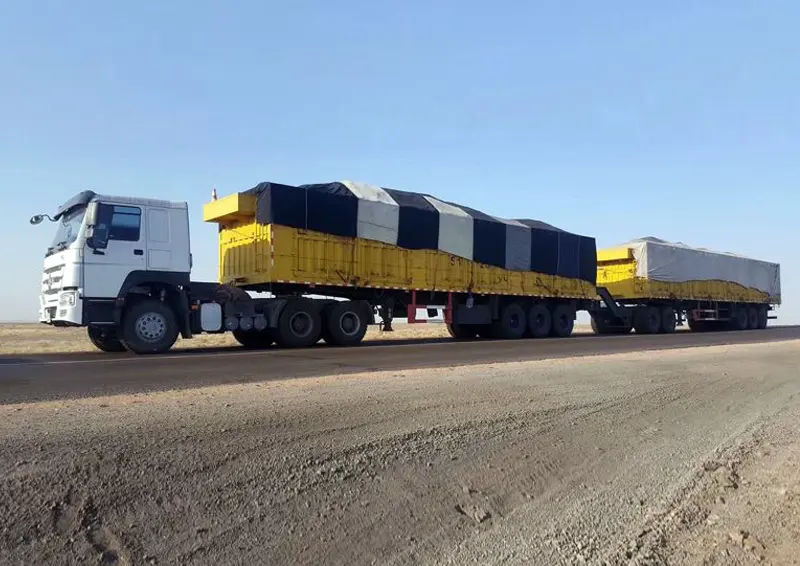

Sinotruk Howo 7 6×4 Cargo Truck-3
Product Introduction
Overview

Sinotruk Howo 7 6×4 Cargo Truck is an in-house developed product with a proprietary brand and intellectual property rights. Sinotruk Howo 7 6×4 Cargo Truck is a new generation of heavy-duty truck that applies the most sophisticated manufacturing technique and the top-grade design.

Sinotruk Howo 7 6×4 Cargo Truckcan be divided into flatbed truck, stake truck, dropside truck, box truck and many others. Its drive system is also available in various types, including 4×2, 6×2, 6×4 and 8×4 etc. Its power ranges from 266HP to 420HP.

In addition, this Sinotruk Howo 7 6×4 Cargo Truck is outfitted with a kind of manganese plate which is 3mm long and 1.5mm wide. Depending on your actual needs, you can choose either a panel van or a stake bed truck.

Hot Tags: Sinotruk Howo 7,sinotruk cargo truck, Sinotruk Howo 6×4 Cargo Truck,China, manufacturers, suppliers, factory, buy, for sale,sinotruk howo 6×2 380, howo truck chassis, howo light truck price, howo sinotruk 70 ton,

Sinotruk Howo 7 6x4 Cargo Truck

Due to extinguished dynamic property, low oil consumption and stable performance, the Sinotruk Howo 7 6×4 Cargo Truck is commonly used for short, medium and long-distance transport. The driver’s cab is beautiful, safe and comfortable. In addition, a diverse selection of configurations can be offered to access the specific requirements of customers.

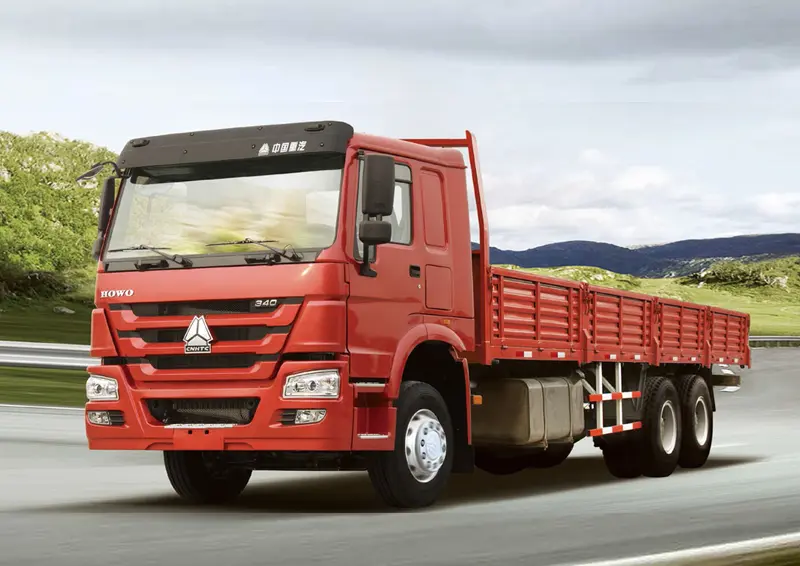

Sinotruk Howo 7 6×4 Cargo Truck-2
Parameters

Model

ZZ1257N4641W



Engine

Make:SINOTRUK

Engine   model: WD615.69, Euro II emission standard

4 stroke   direct injection diesel engine

6   cylinder in-line with water cooling, turbo-charging & intercooling

Maximum   output: 336hp(247Kw)at 2200 rpm according to DIN

Maximum   torque: 1350Nm at 1100~1600 rpm

Bore: 126mm;  Stroke: 130mm;

Displacement:   9.726L;  Compression ratio:17:1



Clutch

Single- plate dry diaphragm spring clutch, diameter 430mm,   hydraulically operating with air assistance



Transmission

Transmission,   model HW19710



Propeller   Shaft

Double   universal joint propeller shaft with gear-shaped coupling flange



Front   Axle

Steering   with double T-cross section



Rear   Axles

Pressed   axle housing, central single reduction with planetary wheel reduction (hub   reduction),  and differential locks   between wheels and axles

Ratio: 4.42                     Option:  4.22  4.80   3.7 4.11



Chassis

Frame:   U-profile parallel ladder type with section of 300×90×8 mm and reinforced subframe,, all cold   riveted cross members

Front   suspension: 10 semi-elliptic leaf springs with hydraulic telescopic   double-action shock absorbers and stabilizer

Rear   suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer

Spare   wheel carrier: with one spare wheel

Fuel   tank: with 400 L   fuel tank with locking fuel cap.



Steering

ZF8118,   hydraulic steering with power assistance

Ratio:   22.2~26.2:1



Brakes

Service   brake: dual circuit compressed air brake

Parking   Brake(emergency brake): spring energy, compressed air operating on rear   wheels

Auxiliary   brake: engine exhaust brake

Option: ABS



Wheel   & Types

Rims:   8.5-20,10 hole-steel

Types:   12.00R20 Tube

Option: 315/80R22.5   11.00R20



Driver’s   cab

Long cab



Electrics

Operating   voltage:24V, negative grounded;    Starter: 24V, 5.4KW

Alternator:   28V, 1540W;  Batteries: 2×12, 165Ah

Cigar-lighter, horn, headlamp, fog light, brake lights,   indicators and reverse lamp



Dimensions   in mm

Wheel   base

Front   wheel track

Rear   wheel track

Front   overhang

Rear   overhang

Approach   angle(o)

Departure   angle(o)

Overall   Dimension



Body size

4600+1350

2022

1830

1500

2900

16

12

10350×2496×3048(mm)   (3718 with air deflector)

7650×2326×800(mm)

Weight in   kg

Permissible   loading capacity on chassis

Dead   weight

Gross   vehicle weight

Front   axle loading capacity

Rear axle   loading capacity

20420

11450

32000

6500

13000×2

Performance

Maximum   driving speed(km/h)

Maximum   gradeability (%)

Minimum   ground clearance(mm)

Minimum   turning circle(m)

Fuel   consumption(L/100km)

97

34

314

21

32



Product Advantages

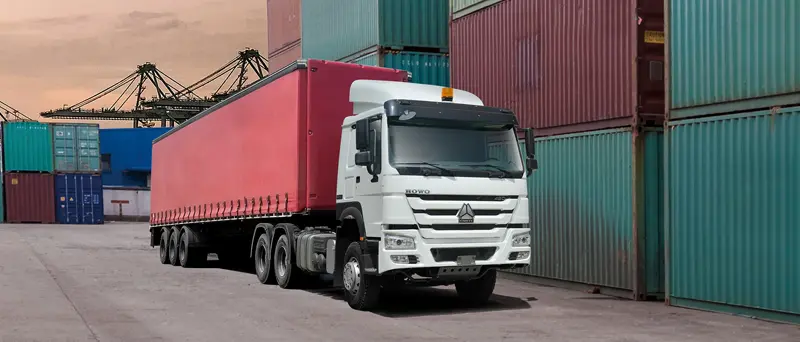

sinotruk howo 7 truck -3
Sinotruk howo 7
HOWO-7: Fully Equipped to Face the Toughest Working Conditions
The HOWO-7 truck excels in challenging environments like construction sites and mines, thanks to its strength, ruggedness, and durability.
In harsh working environments, HOWO-7 is fully equipped to face the toughest working conditions.
sinotruk howo 7 truck -1
High comfort
The HOWO 7 series cab is a cab with beautiful appearance, high safety and high comfort, jointly developed by SINOTRUK and a famous Italian design company. Four-point cab suspension, airbags, air seats, large storage space, 700mm extra-wide bed, improved ergonomics and other designs provide excellent comfort and safety.
sinotruk howo NX truck-2
Safe cabin
The cabin's body is constructed with a one-piece steel frame, providing robust strength, rigidity, and superior resistance to impacts and external forces. Its safety performance has been proven through stringent crash testing.
sinotruk howo NX truck-3
Air cushion
The air cushion helps the driver quickly find a suitable seating position; the ergonomic design of the seat belt and seat helps avoid the driver feeling suffocated due to emergency braking while driving.
sinotruk howo NX truck-4
Four-point air suspension
The four-point air suspension provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.
Product Applications
Sinotruk Howo 7 6×4 Cargo Truck-2
Sinotruk Howo 7 6x4 Cargo Truck
Sinotruk Howo 7 6×4 Cargo Truck-1
Sinotruk Howo 7 6x4 Cargo Truck
Sinotruk Howo 7 6×4 Cargo Truck
Sinotruk Howo 7 6x4 Cargo Truck

SINOTRUK HOWO Heavy Duty Truck

The SINOTRUK HOWO series represents the pinnacle of Chinese heavy-duty truck engineering, combining German MAN technology with superior manufacturing craftsmanship. Designed for exceptional performance, reliability, and economy, the HOWO series has become a preferred choice for logistics and transport operations worldwide.

15%
Fuel Savings
98%
Reliability Rate
25%
More Load Capacity
500k+
Units Sold Globally

Key Features & Advantages

Powerful Engine Performance

Equipped with SINOTRUK's proprietary MC series engines, delivering up to 540 HP and 2500 N·m torque with excellent hill-climbing capability.

Advanced Safety Systems

Comprehensive safety features including ABS+ASR+ESC, lane departure warning, and forward collision warning systems.

Driver-Centered Comfort

Four-point suspended cab, air-suspension seat, multifunction steering wheel, and automatic climate control for reduced driver fatigue.

Eco-Friendly Efficiency

Advanced SCR technology meets China VI emission standards with 5-8% lower fuel consumption than comparable models.

Applications & Use Cases

Long-Distance Logistics

HOWO trucks excel in long-haul transportation with their fuel efficiency and driver comfort features, making them ideal for logistics companies.

Highway Line-haul
Construction

With robust frame structures and exceptional load capacity, HOWO trucks perform reliably in demanding construction environments.

Off-road Heavy load
Cold Chain Logistics

Reliable power systems and precise temperature control compatibility meet strict requirements for perishable goods transportation.

Refrigerated Temperature-controlled

Technology Highlights

SINOTRUK HOWO incorporates cutting-edge technologies that set new standards in the heavy-duty truck industry:

Intelligent Driving System

Advanced driver assistance systems (ADAS) including adaptive cruise control, intelligent braking, and fatigue monitoring.

Connected Vehicle Technology

Real-time vehicle monitoring, remote diagnostics, and fleet management integration for optimized operations.

SINOTRUK Media Gallery

SINOTRUK HOWO series meets international quality and safety standards:

Global Presence & Recognition

SINOTRUK HOWO trucks have gained international recognition and are operating successfully in diverse markets around the world:

Asia-Pacific Markets

Market leader in Southeast Asia with strong presence in Thailand, Vietnam, and Philippines.

African Operations

Extensive service network across Africa with proven performance in challenging conditions.

European Certification

HOWO models meet stringent European standards with growing presence in Eastern European markets.

Customer Testimonials

"Our fleet of 20 HOWO T7H trucks has demonstrated 40% lower failure rate compared to our previous brand, with significantly better fuel economy that reduces our operating costs."

— John Smith, Logistics Manager

"The driver comfort in HOWO trucks is exceptional. The reduced fatigue on long hauls has improved our safety record and driver retention significantly."

— Sarah Johnson, Fleet Owner

"SINOTRUK's after-sales service network is comprehensive. Even in remote areas, we receive prompt technical support and parts availability."

— Robert Chen, Transportation Director

"Our HOWO dump trucks have proven incredibly reliable in harsh construction environments, with excellent load capacity and minimal downtime."

— Michael Brown, Construction Manager

Certifications & Quality Standards

SINOTRUK HOWO series meets international quality and safety standards:

ISO 9001 Certification

International quality management system certification ensuring consistent product quality.

ECE R29 Certification

European safety standard for cab strength and occupant protection.

China VI Emission Standard

Compliance with the latest Chinese emission regulations.

Frequently Asked Questions

What is the maintenance interval for HOWO trucks?

Standard maintenance intervals are 15,000 km for oil changes and 30,000 km for comprehensive servicing, though this may vary based on operating conditions.

What warranty coverage is provided with HOWO trucks?

SINOTRUK offers a comprehensive warranty package including 24 months or 200,000 km coverage (whichever comes first) for the base vehicle and 12 months or 100,000 km for specific components.

How does HOWO compare to European truck brands?

HOWO trucks offer comparable performance and reliability to European brands at a more competitive price point, with lower maintenance costs and excellent parts availability.

What fuel efficiency can I expect from a HOWO truck?

Depending on model and operating conditions, HOWO trucks typically achieve 25-30 liters per 100 km, which is 5-8% better than industry averages for comparable vehicles.
