Sinotruk howo 6x4 dump truck

Sinotruk howo 6x4 dump truck

Vehicle type
Dump Trucks
Model
ZZ3317V326GF1
Engine (Ps)
Euro III,WD615.96C
Engine oil
23L
Dimension
5800 x 2300 x 1500mm
Drive type
6x4
Transmission
HW19710
Start Order Request
Customer Ratings 4.8 out of 5
sinotruk howo 6×4 dump truck

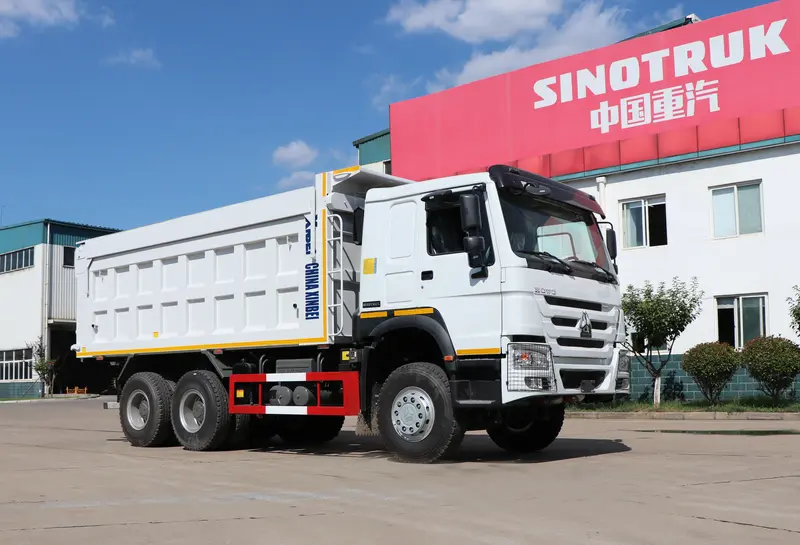

sinotruk howo 6×4 dump truck-2

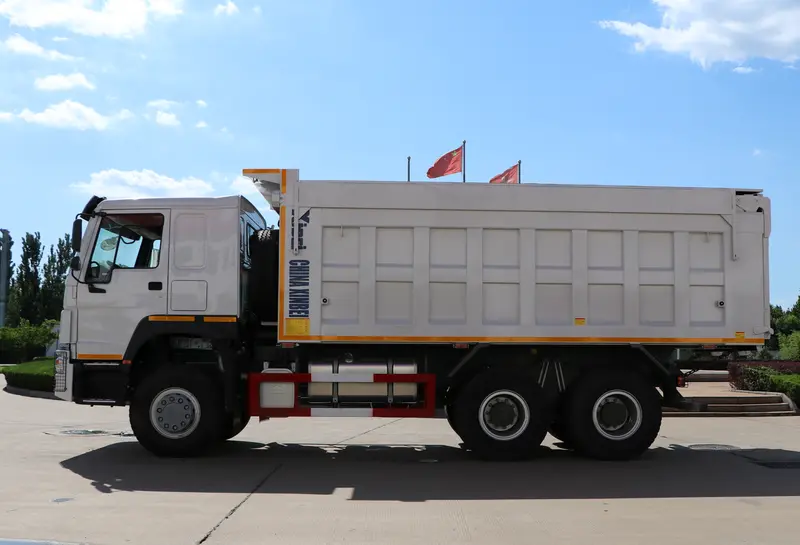

sinotruk howo 6×4 dump truck-1

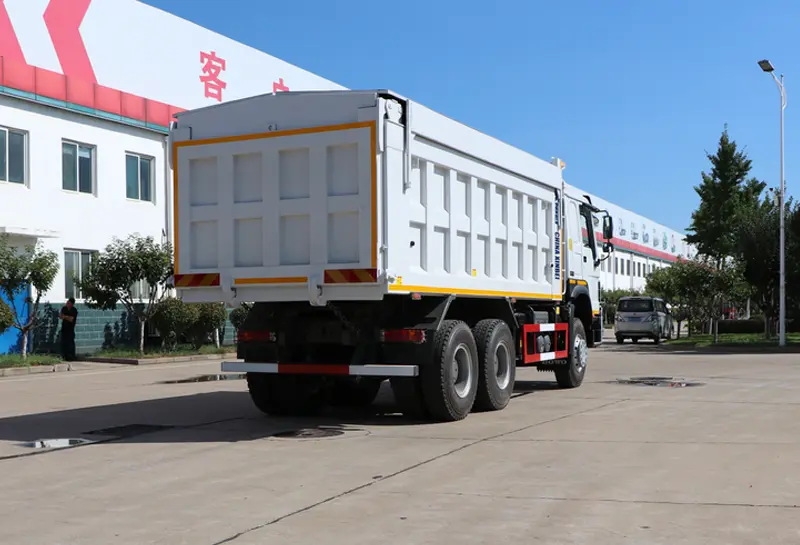

sinotruk howo 6×4 dump truck-3
Product Introduction
Overview

Sinotruk howo 6×4 dump truck is a mature model of SINOTRUK with the reliable and stable structure design, high bearing capacity, excellent engine force and highly stable performance, with its fame forged in construction and mining industries with adverse operating environments, available for the short-range earthwork transportation tasks for mines and construction projects.

Sinotruk howo 6x4 dump truck -The Versatile HOWO

The highly-general chassis can perfectly complete the tasks in various scenarios; a variety of cabs with different configurations can meet your different driving needs; Engines at various HP + transmissions with various torques can use the horsepower requirements in various scenarios. In short, no matter what you need, you have made the right choice to give it to the versatile HOWO TX.

sinotruk howo dump truck -7
Parameters
Sinotruk howo 6×4 dump truck
SPECIFICATION
Engine Make: SINOTRUK (howo truck parts)
Disel:4-Stroke direct injection diesel engine
Engine model: Euro III,WD615.96C
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 380hp at 2000 rpm according to DIN
Maximum torque: 1590Nm at 1200-1500 rpm
Displacement:9.726L
Bore:126mm
Stroke:130mm
Compression ratio:17.5:1
Specific fuel consumption:195g/kWh
Engine oil filling quantity:23L
Cooling system filling quantity(long-term filling):40L
Thermostat with 71℃ opening begin
Twin cylinder air compressor
Clutch Single-plate dry coil-spring clutch, diameter 430mm,hydraulically
operating with air assistance.
Transmission HW19710, 10 forward, 2 reverse, manual.
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.8, 1.34, 1. R13.91, R3.18.
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle Steering with double T-cross section beam
Rear Axles Pressed axle housing, central single reduction with planetary wheel reduction
 and with differential lock
Chassis Frame: U-profile parallel ladder frame with section of 300×80×8mm and
reinforced subframe, all cold riveted cross members
Aluminum fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis
Steering ZF power steering, model ZF8098,hydraulic steering with power assistance.
Ratio: 22.2-26.2 (howo truck parts catalog pdf)
Braking System Service brake: dual circuit compressed air brake
Parking brake(emergency brake):spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
ABS
Tyres 11.00/22.5,11pics, radial tyres.
Cab HW76 Cab, one berth, right hand drive, air condition, all steel forward control,
 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with three speeds,
laminated windscreen with casted-in radio aerial, hydraulically damped adjustable
driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system,
exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts,
adjustable steering wheel, air horn, with 4-point support fully floating suspension + shock
absorbers
Electrical System Operating voltage:24V,negative grounded
Starter:24V.7.5Kw
Alternator:3-phase,28V,1500W
Batteries:2*12V,165Ah/180Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights,
indicators and reverse light, backing alarm
Instrument Active check central controller with indicators, with this integral instrument the daily manual checks
on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil
pressure and battery charging.
Dimensions in mm Wheel base                                                        3825+1350
Front wheel track                                                2022
Rear wheel track                                                 1830
Front overhang                                                    1540
Rear overhang                                                    1870
Approach angle(°)                                               20
Departure angel(°)                                               24
Overall length                                                      8665
Overall width                                                       2496
Overall height                                                      3947
Cargo box Dimension                                                          5800 x 2300 x 1500mm
Lifting type                                                          central lifting
Ram                                                                   Φ220*980
Weight in kg Dead weight                                                        12300
Front axle loading capacity                                 7000
Rear axle loading capacity                                 18000 （double axle）
Performance Maximum driving speed(km/h)                           80
Fuel consumption(L/100km)                              30-33
Product Advantages
Smarter and more convenient
The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.
More comfortable
Optimized air distribution at the driver and passenger side vents can provide a more comfortable body feeling. The overall air volume has increased by 9.5% compared to the previous generation. Under the sleeper, an integrated super-large storage space is added to make the space utilization more reasonable.
More safely,more quieter
The cab is designed with four-point suspension, which can filter out bumps and vibrations. Moreover, the cab shock absorbers and chassis shock absorbers have undergone comprehensive recalibration and tuning, so that the noise level of the complete vehicle is reduced by 3dB, creating a quieter driving environment.
Golden Power
The Howo TX truck is upgraded to a new generation of golden power system, providing a richer range of power configurations to meet different needs. It can output strong power of up to 540 HP and 2500 Nm, and fully meet the emission requirements of Euro ll to Euro VI.
Advanced Driver Assistance System (ADAS)
We embrace a people-first approach to safety, putting the well-being of all road users at the forefront. Utilizing digital technology for intelligent monitoring and control, we wholeheartedly safeguard your safety during your journey.
Product Applications
sinotruk howo dump truck -3
Sinotruk howo 6x4 dump truck
sinotruk howo dump truck -4
Sinotruk howo 6x4 dump truck
sinotruk howo dump truck -9
Sinotruk howo 6x4 dump truck
sinotruk howo dump truck -7
Sinotruk howo 6x4 dump truck
sinotruk howo dump truck -4
Sinotruk howo 6x4 dump truck

SINOTRUK HOWO Heavy Duty Truck

The SINOTRUK HOWO series represents the pinnacle of Chinese heavy-duty truck engineering, combining German MAN technology with superior manufacturing craftsmanship. Designed for exceptional performance, reliability, and economy, the HOWO series has become a preferred choice for logistics and transport operations worldwide.

15%
Fuel Savings
98%
Reliability Rate
25%
More Load Capacity
500k+
Units Sold Globally

Key Features & Advantages

Powerful Engine Performance

Equipped with SINOTRUK's proprietary MC series engines, delivering up to 540 HP and 2500 N·m torque with excellent hill-climbing capability.

Advanced Safety Systems

Comprehensive safety features including ABS+ASR+ESC, lane departure warning, and forward collision warning systems.

Driver-Centered Comfort

Four-point suspended cab, air-suspension seat, multifunction steering wheel, and automatic climate control for reduced driver fatigue.

Eco-Friendly Efficiency

Advanced SCR technology meets China VI emission standards with 5-8% lower fuel consumption than comparable models.

Applications & Use Cases

Long-Distance Logistics

HOWO trucks excel in long-haul transportation with their fuel efficiency and driver comfort features, making them ideal for logistics companies.

Highway Line-haul
Construction

With robust frame structures and exceptional load capacity, HOWO trucks perform reliably in demanding construction environments.

Off-road Heavy load
Cold Chain Logistics

Reliable power systems and precise temperature control compatibility meet strict requirements for perishable goods transportation.

Refrigerated Temperature-controlled

Technology Highlights

SINOTRUK HOWO incorporates cutting-edge technologies that set new standards in the heavy-duty truck industry:

Intelligent Driving System

Advanced driver assistance systems (ADAS) including adaptive cruise control, intelligent braking, and fatigue monitoring.

Connected Vehicle Technology

Real-time vehicle monitoring, remote diagnostics, and fleet management integration for optimized operations.

SINOTRUK Media Gallery

SINOTRUK HOWO series meets international quality and safety standards:

Global Presence & Recognition

SINOTRUK HOWO trucks have gained international recognition and are operating successfully in diverse markets around the world:

Asia-Pacific Markets

Market leader in Southeast Asia with strong presence in Thailand, Vietnam, and Philippines.

African Operations

Extensive service network across Africa with proven performance in challenging conditions.

European Certification

HOWO models meet stringent European standards with growing presence in Eastern European markets.

Customer Testimonials

"Our fleet of 20 HOWO T7H trucks has demonstrated 40% lower failure rate compared to our previous brand, with significantly better fuel economy that reduces our operating costs."

— John Smith, Logistics Manager

"The driver comfort in HOWO trucks is exceptional. The reduced fatigue on long hauls has improved our safety record and driver retention significantly."

— Sarah Johnson, Fleet Owner

"SINOTRUK's after-sales service network is comprehensive. Even in remote areas, we receive prompt technical support and parts availability."

— Robert Chen, Transportation Director

"Our HOWO dump trucks have proven incredibly reliable in harsh construction environments, with excellent load capacity and minimal downtime."

— Michael Brown, Construction Manager

Certifications & Quality Standards

SINOTRUK HOWO series meets international quality and safety standards:

ISO 9001 Certification

International quality management system certification ensuring consistent product quality.

ECE R29 Certification

European safety standard for cab strength and occupant protection.

China VI Emission Standard

Compliance with the latest Chinese emission regulations.

Frequently Asked Questions

What is the maintenance interval for HOWO trucks?

Standard maintenance intervals are 15,000 km for oil changes and 30,000 km for comprehensive servicing, though this may vary based on operating conditions.

What warranty coverage is provided with HOWO trucks?

SINOTRUK offers a comprehensive warranty package including 24 months or 200,000 km coverage (whichever comes first) for the base vehicle and 12 months or 100,000 km for specific components.

How does HOWO compare to European truck brands?

HOWO trucks offer comparable performance and reliability to European brands at a more competitive price point, with lower maintenance costs and excellent parts availability.

What fuel efficiency can I expect from a HOWO truck?

Depending on model and operating conditions, HOWO trucks typically achieve 25-30 liters per 100 km, which is 5-8% better than industry averages for comparable vehicles.
