Sinotruk Howo 6x6 dump truck

Sinotruk Howo 6x6 dump truck

Vehicle type
Dump Trucks
Dimension(mm)
8545x2496x3386
Engine
WD615.47
Curb weight(kg)
12290
Max speed(km/h)
75
Model
ZZ3257N3647A
Drive type
6x6
Start Order Request
Customer Ratings 4.8 out of 5

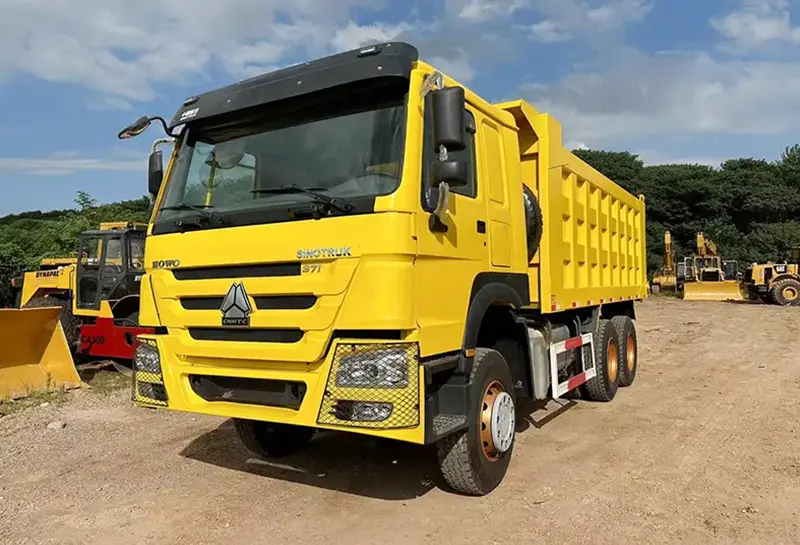

howo 6×4 dump truck

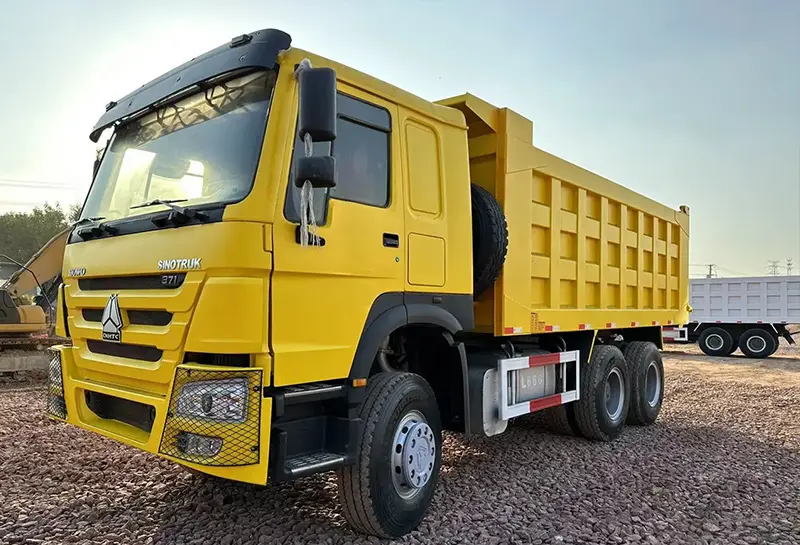

howo 6×4 dump truck-1

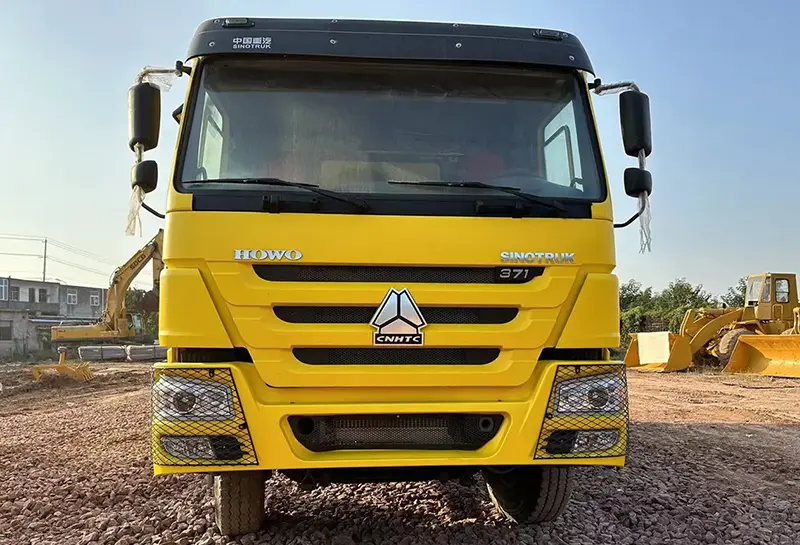

howo 6×4 dump truck-2

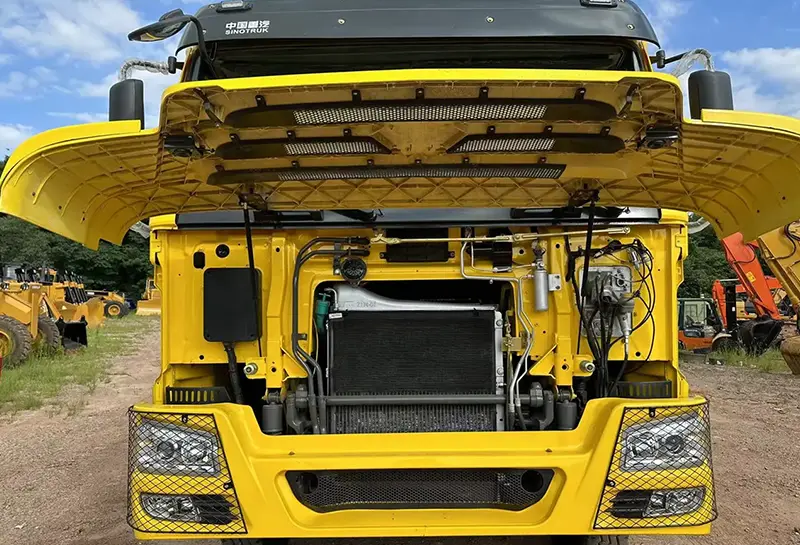

howo 6×4 dump truck-3
Product Introduction
Overview

Sinotruk Howo 6×6 dump truck durable  and bearing capacity
Sinotruk Howo 6×6 dump truck adopt through-type technology  and rear axle single-stage reducer, so which is with high efficiency drive. The  use of advanced design and optimized the design of he frame, making the  structure more reasonable, durable, with strong bearing capacity.

Sinotruk Howo 6×6 dump truck 25 tons dump truck Endless  power and the master of projects
Adopt optimized design of lift hydraulic  and lift units, with reliable quality and stable lifting.

Sinotruk Howo 6x6 dump truck

The New Sinotruk Howo 6×6 dump truck combines power, performance, and reliability to meet the demands of modern industries. With its innovative features and superior capabilities, it is poised to revolutionize the way we think about dump trucks.

sinotruk howo dump truck -1
Parameters

Truck Model

Left Hand Drive or Right Hand Drive model

Truck Brand

Sinotruk Howo 6×6 dump truck

Dimension(Lx W xH)

8545x2496x3386

Cargo body size (L*W*H, mm)

5800x2300x1400

Cargo body thickness(mm)

bottom:8mm, side:6mm, or customized as you required

Lift type of Carriage

Ventral lifting or front tipping

Approaching angle/Departure angle(°)

19/26

Overhang(front/rear) (mm)

1500/1739

Wheel base (mm)

3625+1350

Max speed(km/h)

75

Curb weight(kg)

12290

Loading Weight(kg)

25000

Fuel Tanker

300L with locking fuel cap

Fuel consumption(L/100km)

32

Clutch

Single-plate dry clutch Φ430mm

Engine

Model

WD615.47,4- stroke direct injection diesel

engine, 6 cylinders in line with water cooling ,

Horse Power,

371HP

Emission Standard

EURO II

Transmission

Model

HW 19710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on

rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098/ZF8118 hydraulic steering with power assistance

Front axle

HF9

Rear axle

HC16

Tire

12.00R20, 12.00-20

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah
Product Advantages

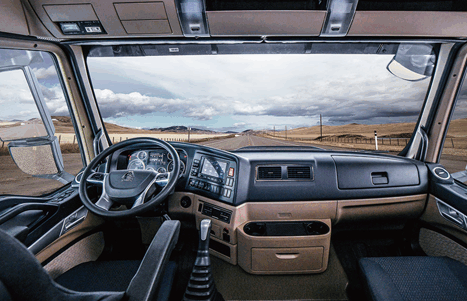

Smarter and more convenient
The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.
More comfortable
Optimized air distribution at the driver and passenger side vents can provide a more comfortable body feeling. The overall air volume has increased by 9.5% compared to the previous generation. Under the sleeper, an integrated super-large storage space is added to make the space utilization more reasonable.
More safely,more quieter
The cab is designed with four-point suspension, which can filter out bumps and vibrations. Moreover, the cab shock absorbers and chassis shock absorbers have undergone comprehensive recalibration and tuning, so that the noise level of the complete vehicle is reduced by 3dB, creating a quieter driving environment.

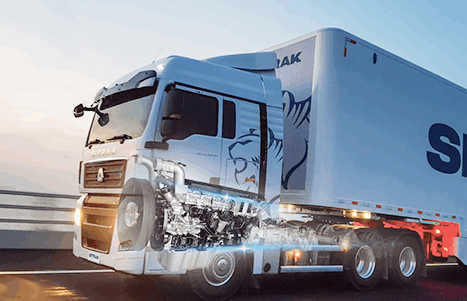

Golden Power
The Howo TX truck is upgraded to a new generation of golden power system, providing a richer range of power configurations to meet different needs. It can output strong power of up to 540 HP and 2500 Nm, and fully meet the emission requirements of Euro ll to Euro VI.
Advanced Driver Assistance System (ADAS)
We embrace a people-first approach to safety, putting the well-being of all road users at the forefront. Utilizing digital technology for intelligent monitoring and control, we wholeheartedly safeguard your safety during your journey.
Product Applications

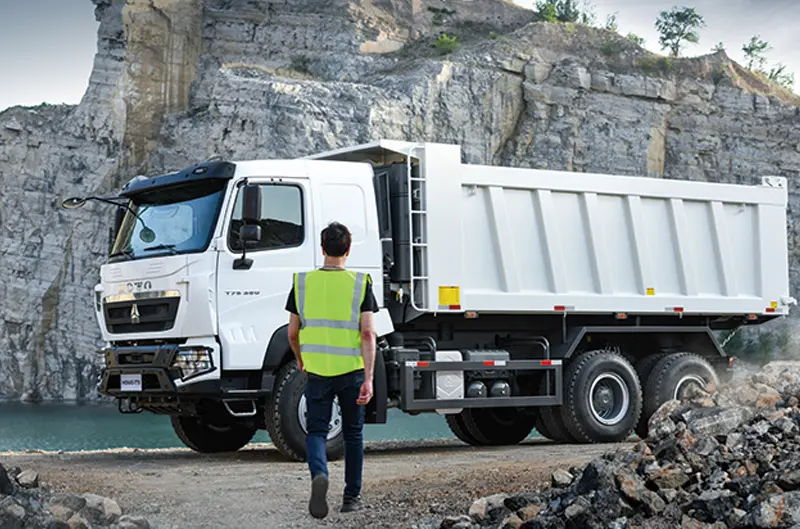

sinotruk howo dump truck -4
Sinotruk Howo 6x6 dump truck
sinotruk howo dump truck -8
Sinotruk Howo 6x6 dump truck
sinotruk howo dump truck -7
Sinotruk Howo 6x6 dump truck

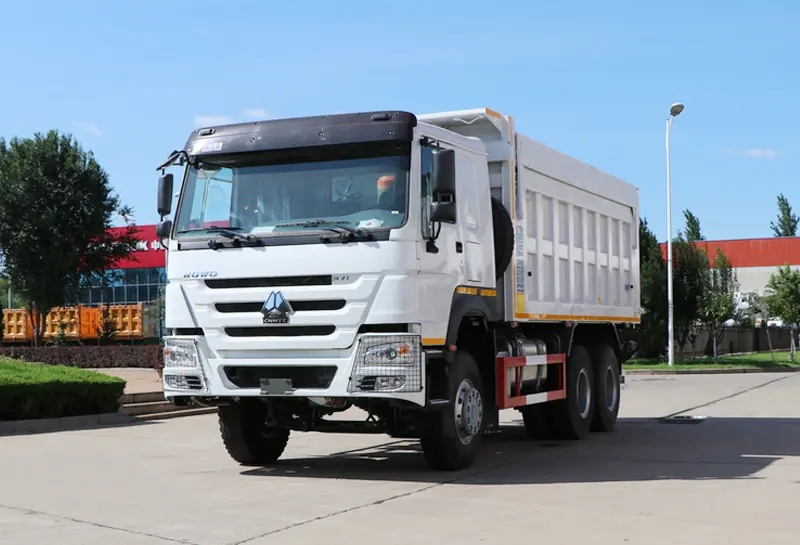

sinotruk howo 6×4 dump truck
Sinotruk Howo 6x6 dump truck
sinotruk howo dump truck -3
Sinotruk Howo 6x6 dump truck

SINOTRUK HOWO Heavy Duty Truck

The SINOTRUK HOWO series represents the pinnacle of Chinese heavy-duty truck engineering, combining German MAN technology with superior manufacturing craftsmanship. Designed for exceptional performance, reliability, and economy, the HOWO series has become a preferred choice for logistics and transport operations worldwide.

15%
Fuel Savings
98%
Reliability Rate
25%
More Load Capacity
500k+
Units Sold Globally

Key Features & Advantages

Powerful Engine Performance

Equipped with SINOTRUK's proprietary MC series engines, delivering up to 540 HP and 2500 N·m torque with excellent hill-climbing capability.

Advanced Safety Systems

Comprehensive safety features including ABS+ASR+ESC, lane departure warning, and forward collision warning systems.

Driver-Centered Comfort

Four-point suspended cab, air-suspension seat, multifunction steering wheel, and automatic climate control for reduced driver fatigue.

Eco-Friendly Efficiency

Advanced SCR technology meets China VI emission standards with 5-8% lower fuel consumption than comparable models.

Applications & Use Cases

Long-Distance Logistics

HOWO trucks excel in long-haul transportation with their fuel efficiency and driver comfort features, making them ideal for logistics companies.

Highway Line-haul
Construction

With robust frame structures and exceptional load capacity, HOWO trucks perform reliably in demanding construction environments.

Off-road Heavy load
Cold Chain Logistics

Reliable power systems and precise temperature control compatibility meet strict requirements for perishable goods transportation.

Refrigerated Temperature-controlled

Technology Highlights

SINOTRUK HOWO incorporates cutting-edge technologies that set new standards in the heavy-duty truck industry:

Intelligent Driving System

Advanced driver assistance systems (ADAS) including adaptive cruise control, intelligent braking, and fatigue monitoring.

Connected Vehicle Technology

Real-time vehicle monitoring, remote diagnostics, and fleet management integration for optimized operations.

SINOTRUK Media Gallery

SINOTRUK HOWO series meets international quality and safety standards:

Global Presence & Recognition

SINOTRUK HOWO trucks have gained international recognition and are operating successfully in diverse markets around the world:

Asia-Pacific Markets

Market leader in Southeast Asia with strong presence in Thailand, Vietnam, and Philippines.

African Operations

Extensive service network across Africa with proven performance in challenging conditions.

European Certification

HOWO models meet stringent European standards with growing presence in Eastern European markets.

Customer Testimonials

"Our fleet of 20 HOWO T7H trucks has demonstrated 40% lower failure rate compared to our previous brand, with significantly better fuel economy that reduces our operating costs."

— John Smith, Logistics Manager

"The driver comfort in HOWO trucks is exceptional. The reduced fatigue on long hauls has improved our safety record and driver retention significantly."

— Sarah Johnson, Fleet Owner

"SINOTRUK's after-sales service network is comprehensive. Even in remote areas, we receive prompt technical support and parts availability."

— Robert Chen, Transportation Director

"Our HOWO dump trucks have proven incredibly reliable in harsh construction environments, with excellent load capacity and minimal downtime."

— Michael Brown, Construction Manager

Certifications & Quality Standards

SINOTRUK HOWO series meets international quality and safety standards:

ISO 9001 Certification

International quality management system certification ensuring consistent product quality.

ECE R29 Certification

European safety standard for cab strength and occupant protection.

China VI Emission Standard

Compliance with the latest Chinese emission regulations.

Frequently Asked Questions

What is the maintenance interval for HOWO trucks?

Standard maintenance intervals are 15,000 km for oil changes and 30,000 km for comprehensive servicing, though this may vary based on operating conditions.

What warranty coverage is provided with HOWO trucks?

SINOTRUK offers a comprehensive warranty package including 24 months or 200,000 km coverage (whichever comes first) for the base vehicle and 12 months or 100,000 km for specific components.

How does HOWO compare to European truck brands?

HOWO trucks offer comparable performance and reliability to European brands at a more competitive price point, with lower maintenance costs and excellent parts availability.

What fuel efficiency can I expect from a HOWO truck?

Depending on model and operating conditions, HOWO trucks typically achieve 25-30 liters per 100 km, which is 5-8% better than industry averages for comparable vehicles.
