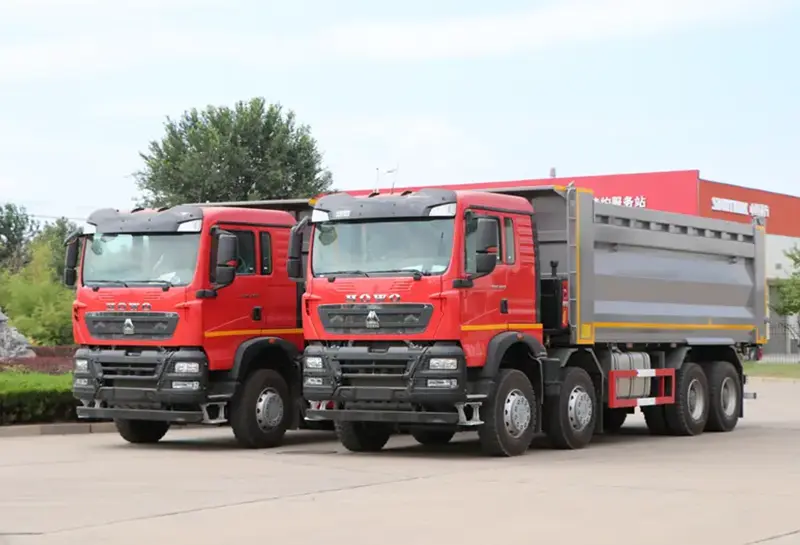

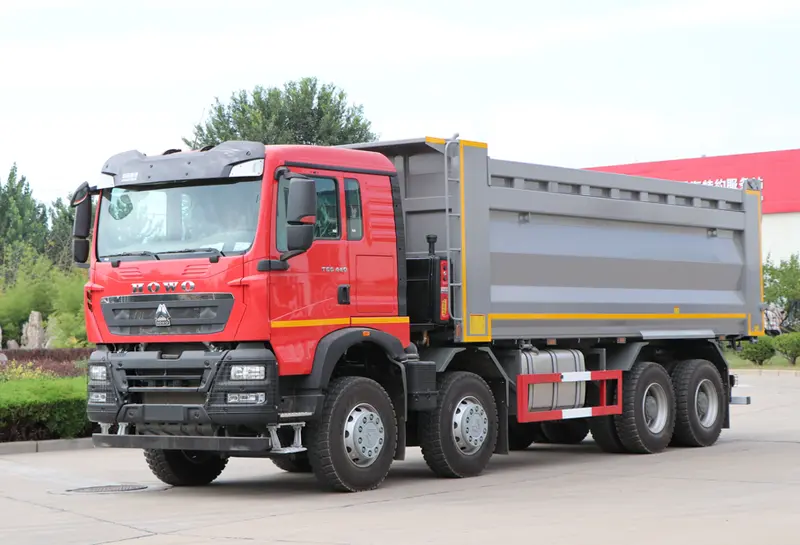

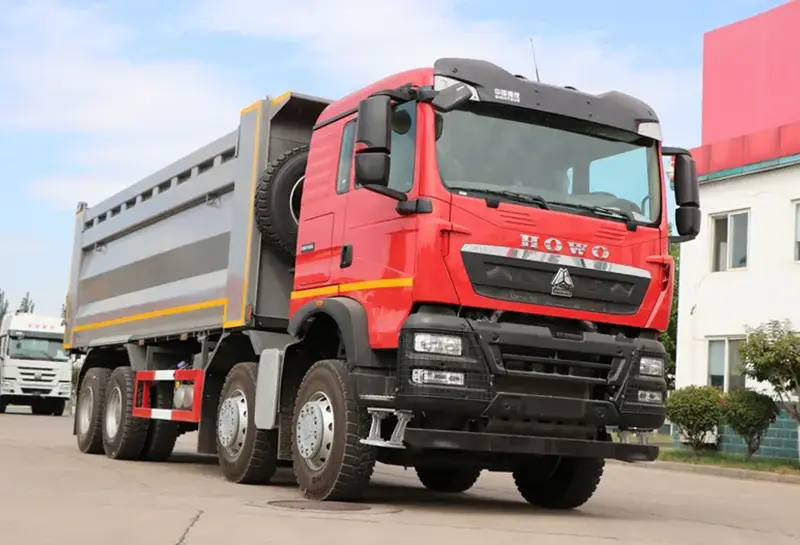

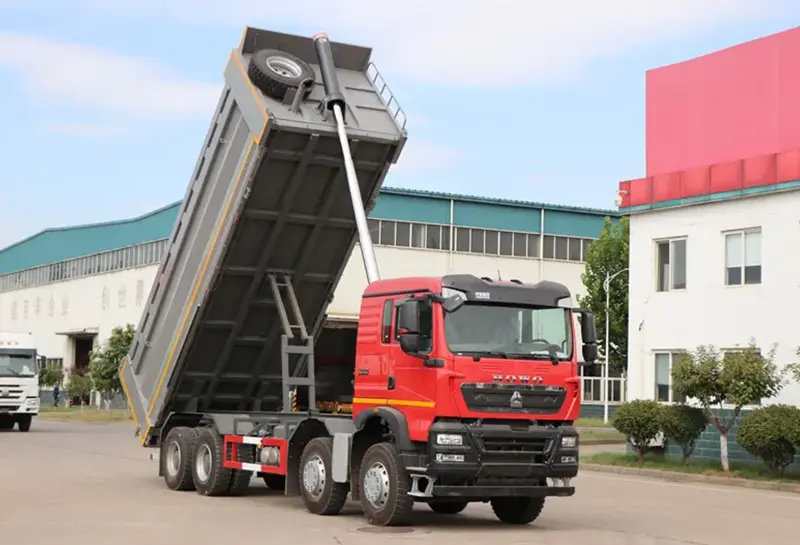

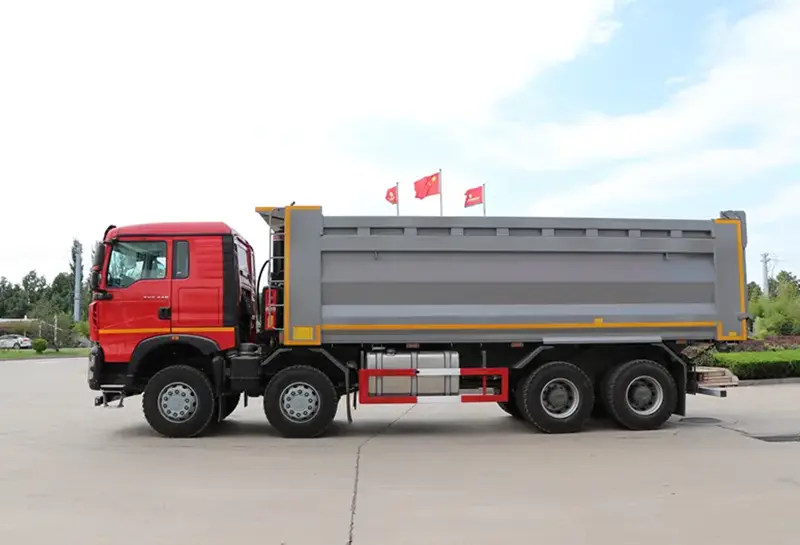

Sinotruk howo 8x4 tipper truck

Parameters

Chassis Model	ZZ3317V3567B1
Driving Type	LHD (RHD is optional)
Cabin	HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine	Make: Weichai Diesel 4-stroke direct injection diesel engine Engine model: WP10.380E22, Euro 2, 380HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L
Transmission	HW19710, 10F & 2R, with PTO Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle	VGD95,2×9000 KGS Steering with doubleT-cross section beam
Rear Axle	MCX16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73
Propeller Shaft	Double universal joint propeller shaft with gear-shaped coupling flange
Chassis	Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres	12.00R20, radial tyres with one spare tyre
Fuel Tank	300L
Cargo Body	730023001700 mm, 28.5CBM, Floor 10mm Side 8mm
Overall Dimension	1075025503450mm

Product Advantages

Ideal working environment

The 7-inch central control screen is adopted for convenient human-computer interaction. The multi-functional leather steering wheel are provided with 16 buttons, which are easy to operate and can be upgraded with functions such as Bluetooth phone, MP5 player, instrument menu and AEB.

All-round view, all eyes

With the wide field of view design, four-position monitoring system (optional) and observation window (optional), the driver can quickly obtain comprehensive visual information about the vehicle's surroundings and traffic dynamics, so as to accurately assess and safely respond to a variety of situations.

Exclusive High-end Power for SINOTRUK HOWO

Stronger power, less fuel: the most advanced BOSCH high-pressure common rail system, the ECU unit according to the running state of the engine to accurately control the fuel injection process, the highest injection pressure of up to 1600bar, so that the atomization effect of fuel injection is better, the engine power is more adequate, lower fuel consumption.

The transmission is always in the right gear.

The HW series gearboxes feature the world's leading gearbox design concept, i.e., double intermediate shafts for the main gearbox and planetary gears for the secondary gearbox, which results in simpler pickup and gearshift operations, higher reliability and durability.

Axles Carry more loads, lower costs

MC series drive axles and V series steering axles are improved on the basis of German advanced axles and combined with the latest technical standards, which have higher transmission efficiency, better heat dissipation performance, higher load carrying capacity and longer service life to match various road conditions.

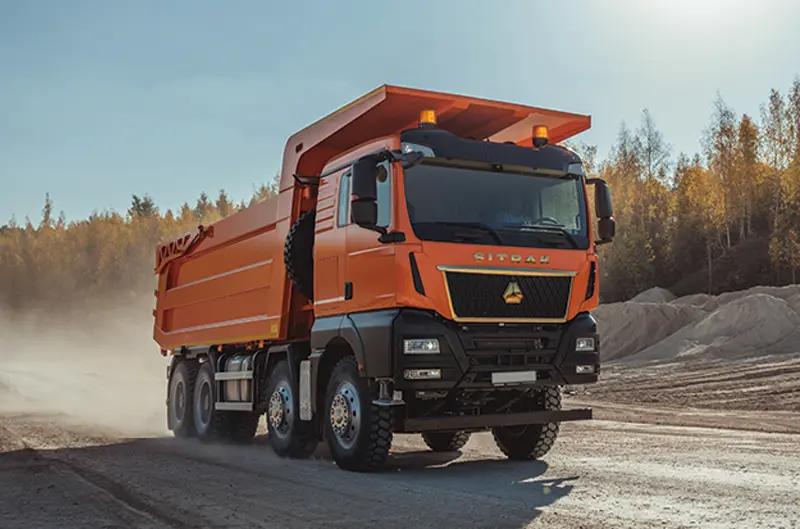

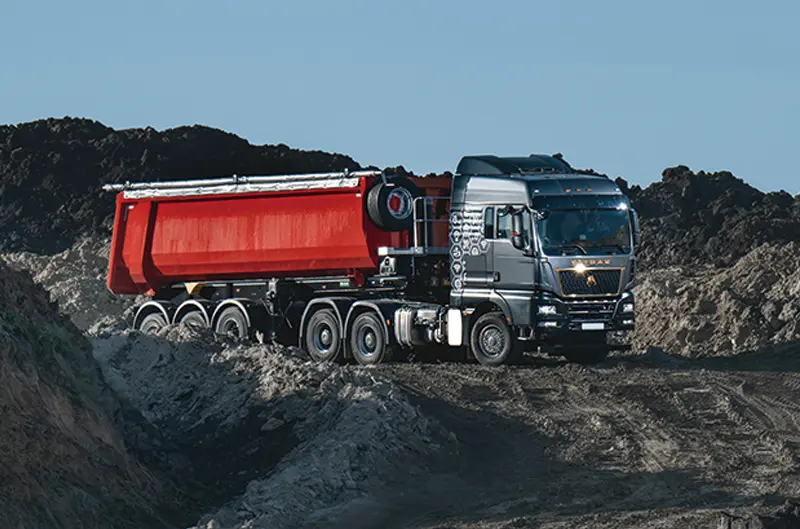

Product Applications
