Sinotruk Howo TX 8x4 Dump Truck

Sinotruk Howo TX 8x4 Dump Truck

Vehicle type
Dump Trucks
Model
ZZ3317N356GB1
Dimension(mm)
8725x2496x3800
Engine
Sinotruk MC11.40-50
Max Horsepower
400
Transmission
Sinotruk HW25712XSL
Drive type
8x4
Start Order Request
Customer Ratings 4.8 out of 5
sinotruk howo TX 8×4 dump truck south africa
sinotruk howo TX 8×4 dump truck south africa-4
sinotruk howo TX 8×4 dump truck south africa-3
sinotruk howo TX 8×4 dump truck south africa-2
sinotruk howo TX 8×4 dump truck south africa-1
Product Introduction
Overview

South Africa’s Top Choice for Heavy Duty Transportation: the Sinotruk Howo TX 8×4 Dump Truck
The Sinotruk Howo TX 8×4 Dump Truck has become a trusted piece of heavy-duty transportation equipment in South Africa’s construction and mining industries.

This Sinotruk Howo TX 8×4 Dump Truck South Africa has earned wide recognition in the South African market for its superior performance and reliability.
The Sinotruk Howo TX 8×4 Dump Truck South Africa is especially adapted to the complex and varied terrain conditions in South Africa. Whether it is a city construction project in Cape Town or a mining operation around Johannesburg, Sinotruk Howo TX 8×4 Dump Truck South Africa is able to fulfill all kinds of heavy-duty transportation tasks stably and reliably.

Many South African contractors choose the Sinotruk Howo TX 8×4 Dump Truck South Africa primarily because of its excellent 8×4 drive configuration that provides excellent traction on South Africa’s gravel roads and rough terrain. The rugged body construction of this Sinotruk Howo TX 8×4 Dump Truck South Africa is also able to cope well with the harsh South African working environment.

From the service support point of view, Sinotruk Howo TX 8×4 Dump Truck South Africa has a well-established local after-sales service network. Users in South Africa can conveniently get Sinotruk Howo TX 8×4 Dump Truck South Africa’s maintenance service and original spare parts supply, which greatly reduces the operating cost of the equipment.

Sinotruk Howo TX 8x4 Dump Truck South Africa

The market demand for Sinotruk Howo TX 8×4 Dump Truck  continues to grow as infrastructure development in South Africa continues to grow. This Sinotruk Howo TX 8×4 Dump Truck  is becoming an important force in the South African heavy haulage market due to its strong power, reliable quality and economical operating costs.

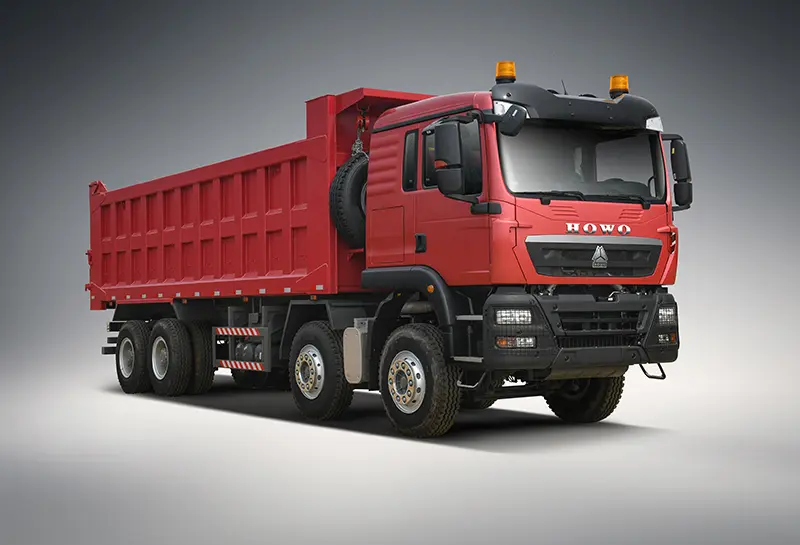

sinotruk howo TX 8×4 dump truck south africa-4
Parameters
Product name: Sinotruk Howo TX 8×4 Dump Truck
Configuration number: ZZ3317N356GB1
Dimensional parameters (mm)
Length: 9075mm Width: 2500mm Height: 3280mm Axle length: 3525mm
Mass parameter （kg）
GVW：31000KG Preparation quality: 11000KG GCW：




Cabin
Cabin Model ：TX-F Direction of steering wheel: mounted on the left Cab features: Medium-wide body convex floor extended flat roof
Engine
Engine model: WD615.47 371hp, WP10 380hp Emission level: National II Displacement (L): 10L Rated power/rated speed: 273 kw/2200r
Maximum torque: 1500N.m
Gear-box
Gearbox Model: HW19710 Type ： MT Maximum input torque 1900N.m Gears: 10 gears
Speed ratio: 14.283
Front axle
Front Model: VGD95 Rated shaft load: 9500kg Brake type: Drum brake Hub bearing type: Standard bearing
Rear axle
Rear Model: MCP16ZG Speed ratio: 5.26 Rated axle load: 16000KG x2 Axle type: Wheel-hub reduction axle (self-developed)
Axle shell type: housing Cast axle Brake type: Drum brake Hub bearing type: Oil lubrication
Other configurations
Suspension description:



Enhanced multi-leaf springs at front and rear (11/11/12)

 Section size: double-layer



frame (8+8/300)

 Volume: 400LFuel tank Wheels: front and  rear  reinforced wheels
Tyre type: Steering gear: Bosch steering machine ABS control system: with ABS Intake system:Engineering air intake system (oil filter)
Standard exhaust system
Product Advantages
SINOTRUK HOWO -2
High Comfort
Featuring an adjustable air suspension seat, the Sinotruk Howo TX 8x4 Dump Truck offers multi-directional electric adjustment and lumbar support, allowing drivers to personalize their seating for optimal comfort. Crafted from high-quality, breathable materials, the seat effectively reduces fatigue during long drives. The thoughtfully designed rest area prioritizes driver well-being, featuring a comfortable sleeper berth to ensure a restorative rest after completing a journey, allowing drivers to recharge and prepare for the road ahead.
SINOTRUK HOWO -1
Excellent Ergonomic Design
Sinotruk Howo TX 8x4 Dump Truck ,All controls, instrument panels, and displays are intuitively arranged for easy access and quick information retrieval, minimizing distractions and maximizing driver focus. The pneumatically controlled steering wheel is fully adjustable for both height and angle.
SINOTRUK HOWO -5
SINOTRUK's Exclusive High-End Power
Sinotruk Howo TX 8x4 Dump Truck ,Experience more power with less fuel: Employing the most advanced BOSCH high-pressure common rail system, the ECU precisely controls the fuel injection process according to the engine’s operating state, achieving a maximum injection pressure of 1600 bar to ensure superior fuel atomization, increased engine power, and reduced fuel consumption.
SINOTRUK HOWO -4
Transmission - Always in the Right Gear
Sinotruk Howo TX 8x4 Dump Truck ,The HW series transmission incorporates a globally advanced transmission design, employing a double countershaft main transmission coupled with a planetary gear auxiliary transmission. This results in simpler, more reliable, and more durable PTO and gear shifting operations.
SINOTRUK HOWO -6
Axles - Carry More, Cost Less
Sinotruk Howo TX 8x4 Dump Truck ,The MC series drive axles and V series steering axles are engineered based on advanced German axle technology and improved with the latest technical standards, offering higher transmission efficiency, superior heat dissipation, increased load capacity, and extended service life to accommodate various road conditions.
Product Applications

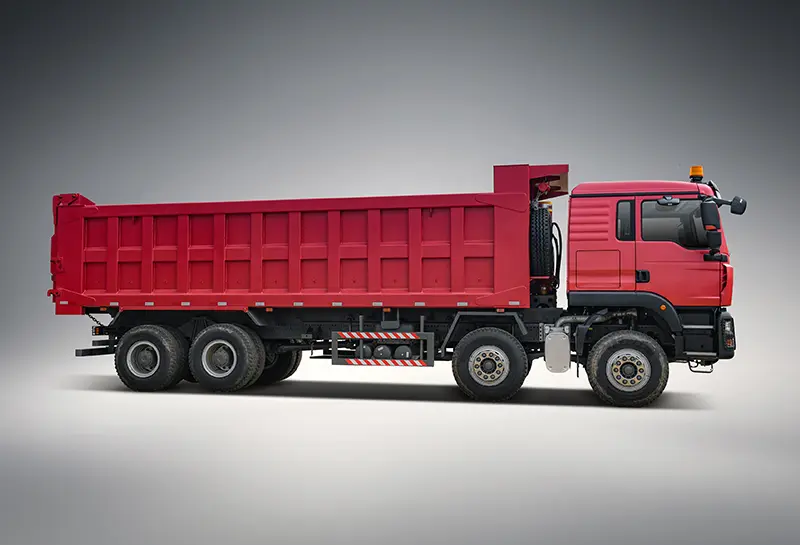

sinotruk howo TX 8×4 dump truck south africa-2
Sinotruk Howo TX 8x4 Dump Truck
sinotruk howo TX 8×4 dump truck south africa
Sinotruk Howo TX 8x4 Dump Truck

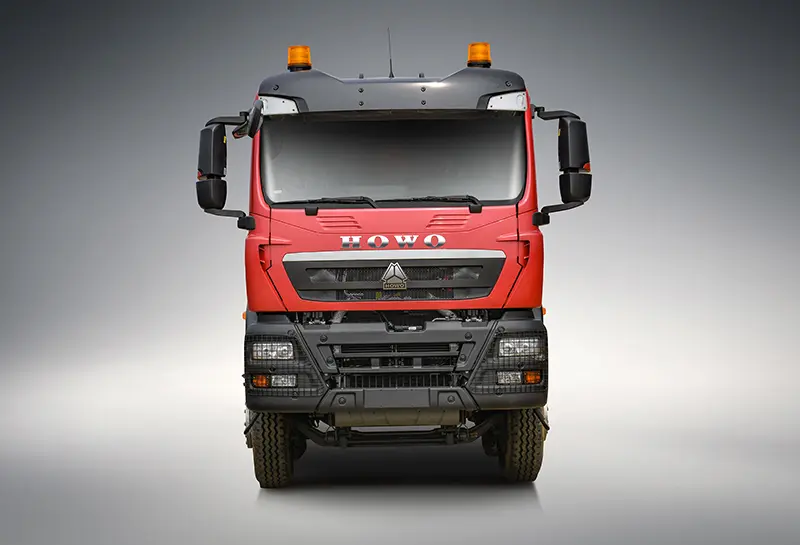

sinotruk howo TX 8×4 dump truck south africa-1
Sinotruk Howo TX 8x4 Dump Truck

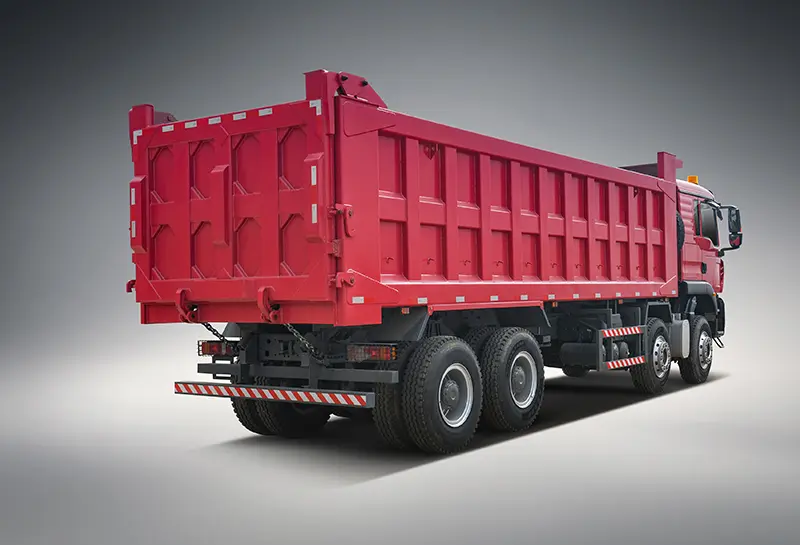

sinotruk howo TX 8×4 dump truck south africa-3
Sinotruk Howo TX 8x4 Dump Truck
sinotruk howo TX 8×4 dump truck south africa-4
Sinotruk Howo TX 8x4 Dump Truck

SINOTRUK HOWO Heavy Duty Truck

The SINOTRUK HOWO series represents the pinnacle of Chinese heavy-duty truck engineering, combining German MAN technology with superior manufacturing craftsmanship. Designed for exceptional performance, reliability, and economy, the HOWO series has become a preferred choice for logistics and transport operations worldwide.

15%
Fuel Savings
98%
Reliability Rate
25%
More Load Capacity
500k+
Units Sold Globally

Key Features & Advantages

Powerful Engine Performance

Equipped with SINOTRUK's proprietary MC series engines, delivering up to 540 HP and 2500 N·m torque with excellent hill-climbing capability.

Advanced Safety Systems

Comprehensive safety features including ABS+ASR+ESC, lane departure warning, and forward collision warning systems.

Driver-Centered Comfort

Four-point suspended cab, air-suspension seat, multifunction steering wheel, and automatic climate control for reduced driver fatigue.

Eco-Friendly Efficiency

Advanced SCR technology meets China VI emission standards with 5-8% lower fuel consumption than comparable models.

Applications & Use Cases

Long-Distance Logistics

HOWO trucks excel in long-haul transportation with their fuel efficiency and driver comfort features, making them ideal for logistics companies.

Highway Line-haul
Construction

With robust frame structures and exceptional load capacity, HOWO trucks perform reliably in demanding construction environments.

Off-road Heavy load
Cold Chain Logistics

Reliable power systems and precise temperature control compatibility meet strict requirements for perishable goods transportation.

Refrigerated Temperature-controlled

Technology Highlights

SINOTRUK HOWO incorporates cutting-edge technologies that set new standards in the heavy-duty truck industry:

Intelligent Driving System

Advanced driver assistance systems (ADAS) including adaptive cruise control, intelligent braking, and fatigue monitoring.

Connected Vehicle Technology

Real-time vehicle monitoring, remote diagnostics, and fleet management integration for optimized operations.

SINOTRUK Media Gallery

SINOTRUK HOWO series meets international quality and safety standards:

Global Presence & Recognition

SINOTRUK HOWO trucks have gained international recognition and are operating successfully in diverse markets around the world:

Asia-Pacific Markets

Market leader in Southeast Asia with strong presence in Thailand, Vietnam, and Philippines.

African Operations

Extensive service network across Africa with proven performance in challenging conditions.

European Certification

HOWO models meet stringent European standards with growing presence in Eastern European markets.

Customer Testimonials

"Our fleet of 20 HOWO T7H trucks has demonstrated 40% lower failure rate compared to our previous brand, with significantly better fuel economy that reduces our operating costs."

— John Smith, Logistics Manager

"The driver comfort in HOWO trucks is exceptional. The reduced fatigue on long hauls has improved our safety record and driver retention significantly."

— Sarah Johnson, Fleet Owner

"SINOTRUK's after-sales service network is comprehensive. Even in remote areas, we receive prompt technical support and parts availability."

— Robert Chen, Transportation Director

"Our HOWO dump trucks have proven incredibly reliable in harsh construction environments, with excellent load capacity and minimal downtime."

— Michael Brown, Construction Manager

Certifications & Quality Standards

SINOTRUK HOWO series meets international quality and safety standards:

ISO 9001 Certification

International quality management system certification ensuring consistent product quality.

ECE R29 Certification

European safety standard for cab strength and occupant protection.

China VI Emission Standard

Compliance with the latest Chinese emission regulations.

Frequently Asked Questions

What is the maintenance interval for HOWO trucks?

Standard maintenance intervals are 15,000 km for oil changes and 30,000 km for comprehensive servicing, though this may vary based on operating conditions.

What warranty coverage is provided with HOWO trucks?

SINOTRUK offers a comprehensive warranty package including 24 months or 200,000 km coverage (whichever comes first) for the base vehicle and 12 months or 100,000 km for specific components.

How does HOWO compare to European truck brands?

HOWO trucks offer comparable performance and reliability to European brands at a more competitive price point, with lower maintenance costs and excellent parts availability.

What fuel efficiency can I expect from a HOWO truck?

Depending on model and operating conditions, HOWO trucks typically achieve 25-30 liters per 100 km, which is 5-8% better than industry averages for comparable vehicles.
