Sinotruk Howo Light Cargo Truck

Sinotruk Howo Light Cargo Truck

Vehicle type
Light Trucks
Model
ZZ1127H4515F1
Engine
Weichai WP3NQ170E62
Horsepower
170hp
Top speed:
89km/h
Transmission
8-Speed
Drive type
4x2
Start Order Request
Customer Ratings 4.8 out of 5
Sinotruk Howo Light Cargo Truck(1)
sinotruk howo light cargo truck-1
sinotruk howo light cargo truck-2

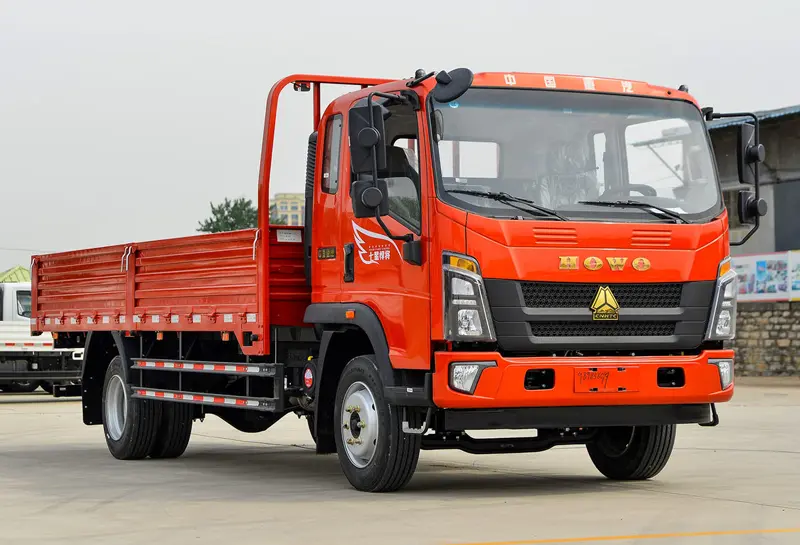

sinotruk howo light cargo truck-3

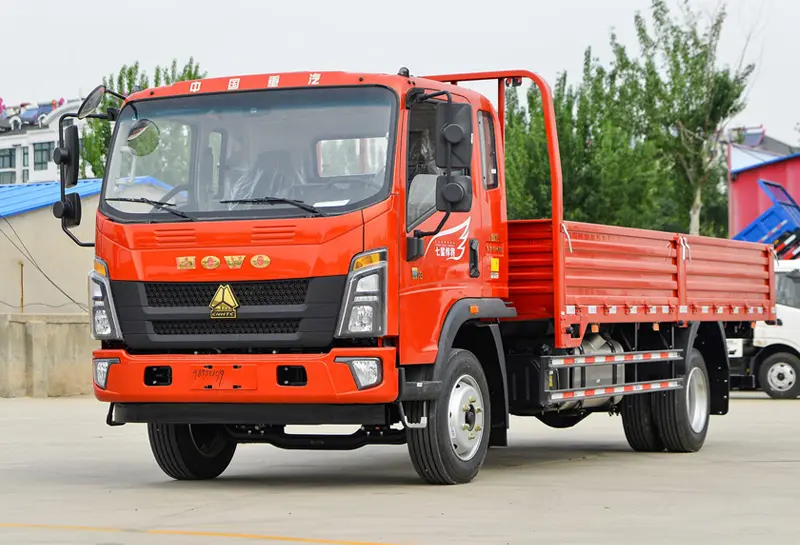

sinotruk howo light cargo truck
Product Introduction
Overview

Sinotruk Howo Light Cargo Truck find applications in various industries and sectors due to their versatility and reliability. Sinotruk Howo Light Cargo Truck are specifically designed to handle lighter loads and navigate through urban or rural areas with ease. Here are some common applications of Sinotruk howo 4×2 light cargo truck:

Logistics and Transportation:Sinotruk Howo Light Cargo Truck find are widely used for the transportation of goods and materials in urban and suburban areas. Their compact size and maneuverability make them well-suited for navigating through congested city streets and narrow lanes.

E-commerce Delivery: With the rapid growth of e-commerce, Sinotruk Howo Light Cargo Truck find are commonly used for last-mile deliveries. Their ability to access residential areas and make frequent stops makes them ideal for delivering packages and parcels to customers’ doorsteps.

Sinotruk Howo Light Cargo Truck

Municipal Services: Sinotruk Howo 4×2 Light Cargo Truck are employed by municipal authorities for various tasks such as garbage collection, street sweeping, and maintenance of public spaces. Their agility and versatility enable efficient operations in urban environments.

sinotruk howo light cargo truck-4
Parameters
Sinotruk Howo Light Cargo Truck Specifications
Engine
Engine model: YN4102QBZL,EuroⅡemission standard
Clutch
Single-plate diaphragm spring clutch, diameter 300 mm, hydraulically operating
Transmission
WLY transmission, model WLY646,synchromesh,6 forward & 1 reverse Ratio:6.314 3.913 2.262 1.393 1 0.788 5.874 (R)
Front Axle
VGD027QB, forging forming of front axle I-beam, to guarantee the stiffness and high strength.
Rear Axle
HGC055QJ,mature punching welding axle and pressed axle housing Ratio:4.63
Chassis
Frame :ladder frame with section of 215×70×6 mm, all cold riveted cross members
Steering
LG9704470020,hydraulic steering with power assistance Ratio: 18.85:1
Brakes
Service brake: dual circuit compressed air brake Parking brake (emergency brake):spring energy, compressed air operating on rear wheels (optional) Auxiliary brake: engine exhaust brake (optional)
Wheels & Tyres
Rims: 6.00G-16,6 hole-steel Tyres:8.25-16 tube Option:7.50-16 tube, 7.50R16 tube, 8.25R16 tube
Driver’s Cab
Single cab, 45° hydraulically tiltable to the front,2-arm windscreen wiper system with three speeds, adjustable driver’s seat, with heating and ventilating system, interior double sun visor, sunroof, radio and USB interface, safety belts, adjustable steering wheel, horn.
Electrics
Operating voltage:24 V, negative grounded
Instrument Panel
Active check central controller with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure.
Dimensions in mm
Overall dimension(L x W x H mm) 6995×2180×2450 Body size 5150×2050×550
Weight in kg
Dead weight (kg) 3500 Load weight(kg) 7000 Gross vehicle weight (kg) 10500
Performance
Maximum driving speed(km/h) 95 Maximum grade ability(%) 30 Minimum ground clearance(mm) 210 Minimum turning circle(m) 15.5 Fuel consumption(1/100km) 14.5
Product Advantages
sinotruk howo light cargo truck-5

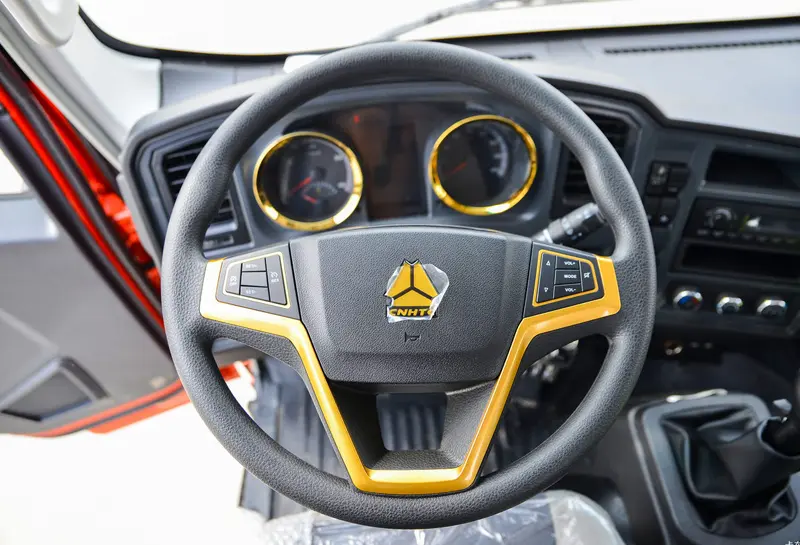

Intelligent Configuration
The wide-body cab is equipped with mechanical shock-absorbing seats, digital instrument panel and reversing radar, which is comfortable and convenient to operate.
Air brake system is standard, and ABS anti-lock function is optional for some models to ensure the stability of emergency braking.

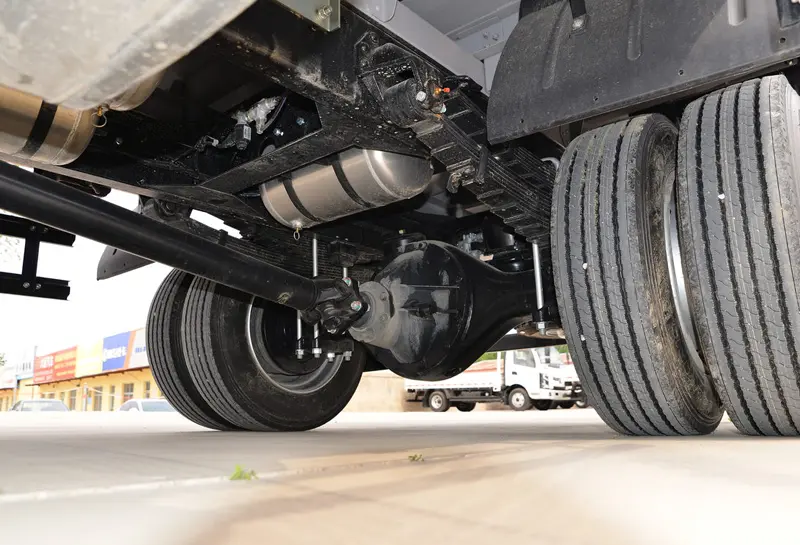

sinotruk howo light cargo truck-6

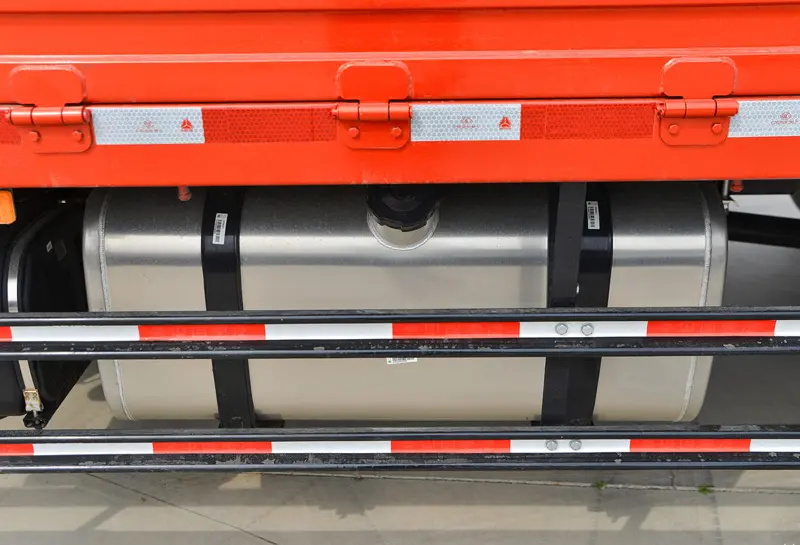

Power system
Equipped with 110-120 hp diesel engine (some models support new energy version), matched with 5-speed or 6-speed manual transmission, stable power output.
Adopting 4X2 drive form, with short wheelbase (about 3-4 meters) and small turning radius, it is suitable for flexible steering on narrow roads.
sinotruk howo light cargo truck-7

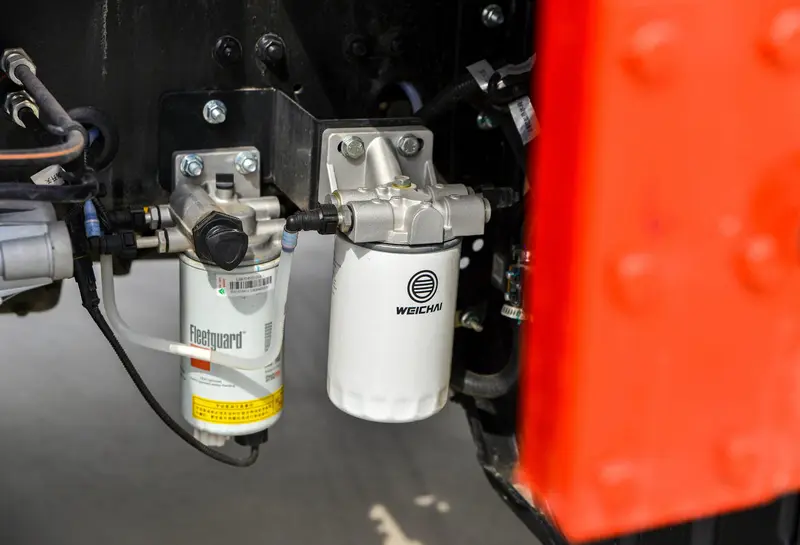

Environmental protection and low noise
The new energy version achieves zero emission, and the diesel model meets the National VI standard, reducing environmental pollution.
Optimized engine sound insulation technology, running noise is lower than the industry average.
sinotruk howo light cargo truck-8
Economical and efficient
Outstanding fuel economy, with energy costs as low as $1 per 150 kilometers for the new energy version, significantly reducing operating expenses.
Modularized design simplifies the maintenance process, with high commonality of parts and components, resulting in low maintenance costs.
sinotruk howo light cargo truck-9

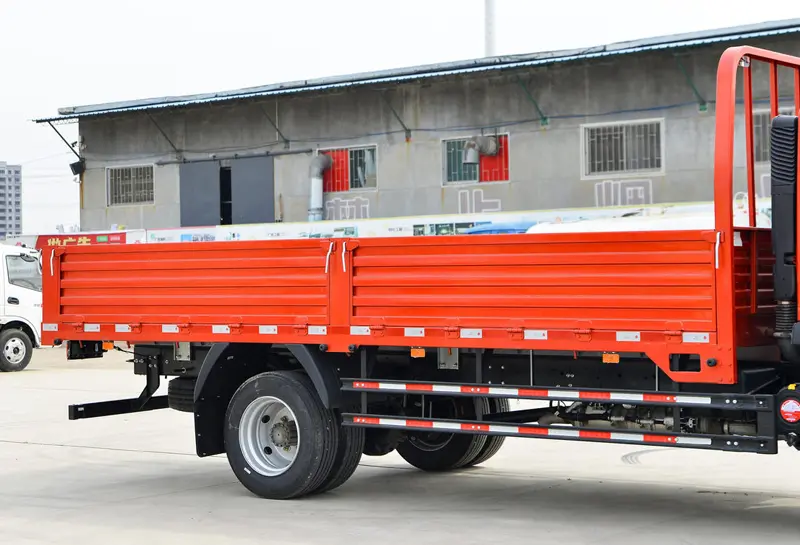

Bodywork
The load range is 5-10 tons, and the length of the cargo box is optional (4.2m to 6.2m), which is suitable for diversified cargo loading needs.
Lightweight carbon steel frame and split mirrors reduce blind spots and improve driving safety.
Product Applications
sinotruk howo light cargo truck-3
Sinotruk Howo Light Cargo Truck
sinotruk howo light cargo truck-2
Sinotruk Howo Light Cargo Truck
sinotruk howo light cargo truck-1
Sinotruk Howo Light Cargo Truck

SINOTRUK HOWO Heavy Duty Truck

The SINOTRUK HOWO series represents the pinnacle of Chinese heavy-duty truck engineering, combining German MAN technology with superior manufacturing craftsmanship. Designed for exceptional performance, reliability, and economy, the HOWO series has become a preferred choice for logistics and transport operations worldwide.

15%
Fuel Savings
98%
Reliability Rate
25%
More Load Capacity
500k+
Units Sold Globally

Key Features & Advantages

Powerful Engine Performance

Equipped with SINOTRUK's proprietary MC series engines, delivering up to 540 HP and 2500 N·m torque with excellent hill-climbing capability.

Advanced Safety Systems

Comprehensive safety features including ABS+ASR+ESC, lane departure warning, and forward collision warning systems.

Driver-Centered Comfort

Four-point suspended cab, air-suspension seat, multifunction steering wheel, and automatic climate control for reduced driver fatigue.

Eco-Friendly Efficiency

Advanced SCR technology meets China VI emission standards with 5-8% lower fuel consumption than comparable models.

Applications & Use Cases

Long-Distance Logistics

HOWO trucks excel in long-haul transportation with their fuel efficiency and driver comfort features, making them ideal for logistics companies.

Highway Line-haul
Construction

With robust frame structures and exceptional load capacity, HOWO trucks perform reliably in demanding construction environments.

Off-road Heavy load
Cold Chain Logistics

Reliable power systems and precise temperature control compatibility meet strict requirements for perishable goods transportation.

Refrigerated Temperature-controlled

Technology Highlights

SINOTRUK HOWO incorporates cutting-edge technologies that set new standards in the heavy-duty truck industry:

Intelligent Driving System

Advanced driver assistance systems (ADAS) including adaptive cruise control, intelligent braking, and fatigue monitoring.

Connected Vehicle Technology

Real-time vehicle monitoring, remote diagnostics, and fleet management integration for optimized operations.

SINOTRUK Media Gallery

SINOTRUK HOWO series meets international quality and safety standards:

Global Presence & Recognition

SINOTRUK HOWO trucks have gained international recognition and are operating successfully in diverse markets around the world:

Asia-Pacific Markets

Market leader in Southeast Asia with strong presence in Thailand, Vietnam, and Philippines.

African Operations

Extensive service network across Africa with proven performance in challenging conditions.

European Certification

HOWO models meet stringent European standards with growing presence in Eastern European markets.

Customer Testimonials

"Our fleet of 20 HOWO T7H trucks has demonstrated 40% lower failure rate compared to our previous brand, with significantly better fuel economy that reduces our operating costs."

— John Smith, Logistics Manager

"The driver comfort in HOWO trucks is exceptional. The reduced fatigue on long hauls has improved our safety record and driver retention significantly."

— Sarah Johnson, Fleet Owner

"SINOTRUK's after-sales service network is comprehensive. Even in remote areas, we receive prompt technical support and parts availability."

— Robert Chen, Transportation Director

"Our HOWO dump trucks have proven incredibly reliable in harsh construction environments, with excellent load capacity and minimal downtime."

— Michael Brown, Construction Manager

Certifications & Quality Standards

SINOTRUK HOWO series meets international quality and safety standards:

ISO 9001 Certification

International quality management system certification ensuring consistent product quality.

ECE R29 Certification

European safety standard for cab strength and occupant protection.

China VI Emission Standard

Compliance with the latest Chinese emission regulations.

Frequently Asked Questions

What is the maintenance interval for HOWO trucks?

Standard maintenance intervals are 15,000 km for oil changes and 30,000 km for comprehensive servicing, though this may vary based on operating conditions.

What warranty coverage is provided with HOWO trucks?

SINOTRUK offers a comprehensive warranty package including 24 months or 200,000 km coverage (whichever comes first) for the base vehicle and 12 months or 100,000 km for specific components.

How does HOWO compare to European truck brands?

HOWO trucks offer comparable performance and reliability to European brands at a more competitive price point, with lower maintenance costs and excellent parts availability.

What fuel efficiency can I expect from a HOWO truck?

Depending on model and operating conditions, HOWO trucks typically achieve 25-30 liters per 100 km, which is 5-8% better than industry averages for comparable vehicles.
