Sinotruk Howo NX 380 6x4 Mixer Truck

Vehicle type

Mixer Trucks

Model

ZZ1255N3846D1

Dimension(m)

8.125×2.496×3.13

Maximum Speed

82km/h

Rated Load

17.45 tons

Engine

Sinotruck D10.38-40

Drive type

6x4

Start Order Request

Customer Ratings 4.8 out of 5

Product Introduction

Overview

Sinotruck’s “How Han” n-series Sinotruk howo NX 380 6×4 mixer truck can be optionally equipped with Sinotruck’s Mann-Tech MC-series engine, HW-series transmission and aluminum alloy shell, as well as Mann-Tech axles special for construction vehicles. With high wheel-end driving force and high reliability, Sinotruk howo NX 380 6×4 mixer truck can be applied to various road conditions. The minimum specific fuel consumption of the engine is less than 186g/kWh, which is at the international leading level.

In addition, through the use of aluminum alloy fuel tank, aluminum alloy gas tank, less leaf spring suspension and other lightweight configuration, the weight of the whole vehicle is reduced by 0.5-0.8t. The cab suspension system with China Heavy Duty Truck (HDDT) technology effectively reduces the vibration in the cab, thus reducing driving fatigue. Sinotruk howo NX 380 6×4 mixer truck ,adopting breakaway design, the cab moves backward after being impacted by certain external force, which strengthens the protection of drivers and passengers, and the passive safety is unparalleled.

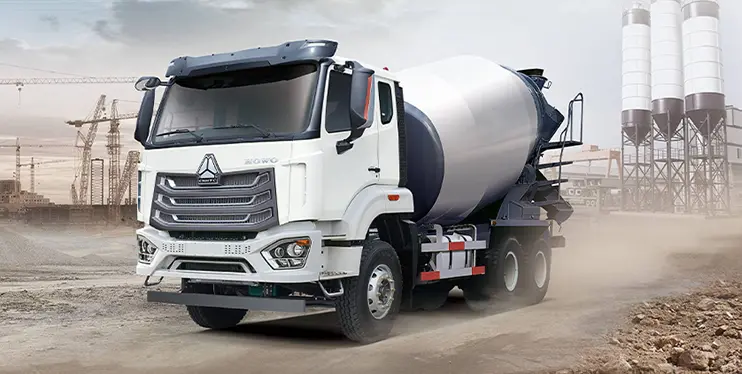

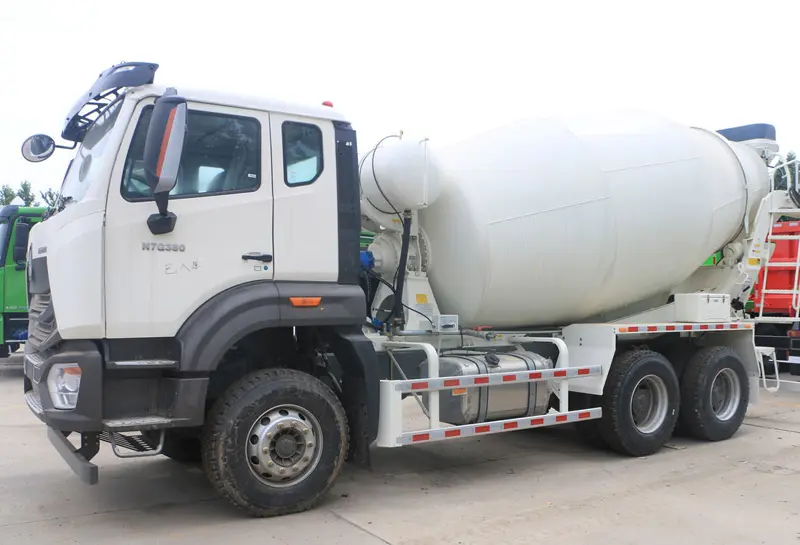

Sinotruk howo NX 380 6x4 mixer truck

In recent years, with the continuous construction of large-scale infrastructure projects in China, the demand for Sinotruk howo NX 380 6×4 mixer truck is also on the rise.Sinotruk has 20 years of rich experience in this field. The newly launched “How Han” n-series Sinotruk howo NX 380 6×4 mixer truck are favored by users for their multi-faceted advantages and have become the new favorites in the infrastructure market.

Parameters

Model	Sinotruk howo NX 380 6×4 mixer truck
Drive Mode	6×4,8×4
Cab	Hf/L Single Bunk Air bags shock absorber. Remote control lock
Engine	Model	WD615
	Displacement (L)	9.726
	Power (Ps)	266-371
	Type	water cooling. four stroke, turbo charging and intercooling, Mechanical fuel injection pump .
		water cooling, four-stroke, turbo charging and intercooling. BOSCH electrically controlled high-pressure common rail
	Emission Standard	Euro II EuroV /Euro III EuroV
Transmission	HW15710, HW19710, HW19712, HW19709XST, HW16709XST
Axle	Front Axle (T)	VGD95
	Rear Axle (T)	MCX16/MCP16
Suspension	Front	Reinforced leaf spring
	Rear	Reinforced leaf spring
Frame	Double frame
Fuel Tank (L)	300 / 400
Tyre	12R22.5, 315/80R22.5 optional

Product Advantages

Superior loading performance

With the super–large feeding diameter, the feeding efficiency is better than the industry level by more than 5%. The discharging is high-efficient with discharging speed 20% higher than the industry level. Blades are designed with a continuous trajectory line, providing uniform stirring, fast discharging and low residual rate. The integrated pilot valve assembly realizes quick switching ot water supply and cleaning, and automatic cleaning. Fuel pumps and motors are internationally famous brands such as PMP in Italy. Rexroth in Germany and SAUER in the United States, with stable operation, low failure rate and long service life. Waterproof design for the whole vehicle: A special waterproof design is adopted for all kinds of wiring harnesses and sensors. The vehicle can be cleaned with spray water

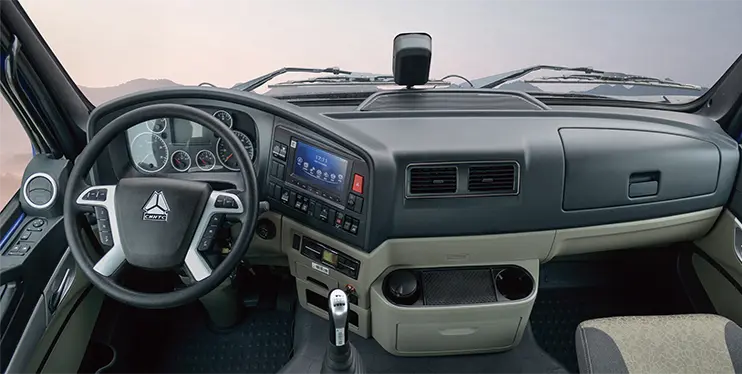

Superior Comfort

The HOWO-NX series cabin is a collaborative development between Sinotruk and a renowned Italian design company, featuring an elegant appearance, high safety standards, and outstanding comfort.

Equipped with a four-point cabin suspension system, safety airbags, air suspension seats, spacious storage compartments, and an extra-wide 700mm sleeper, along with an advanced ergonomic design, it ensures exceptional comfort and safety.

Safe Driving Cabin

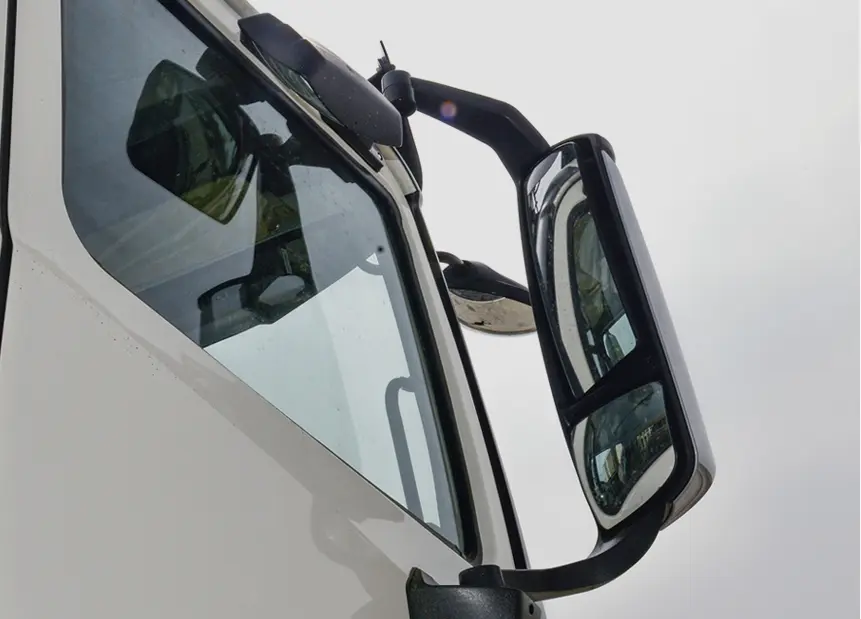

The cabin’s rigidity and strength comply with the EU ECE R29 safety regulations. The wide-angle rearview mirrors and lower view mirror expand visibility by 15%, significantly enhancing driving safety.

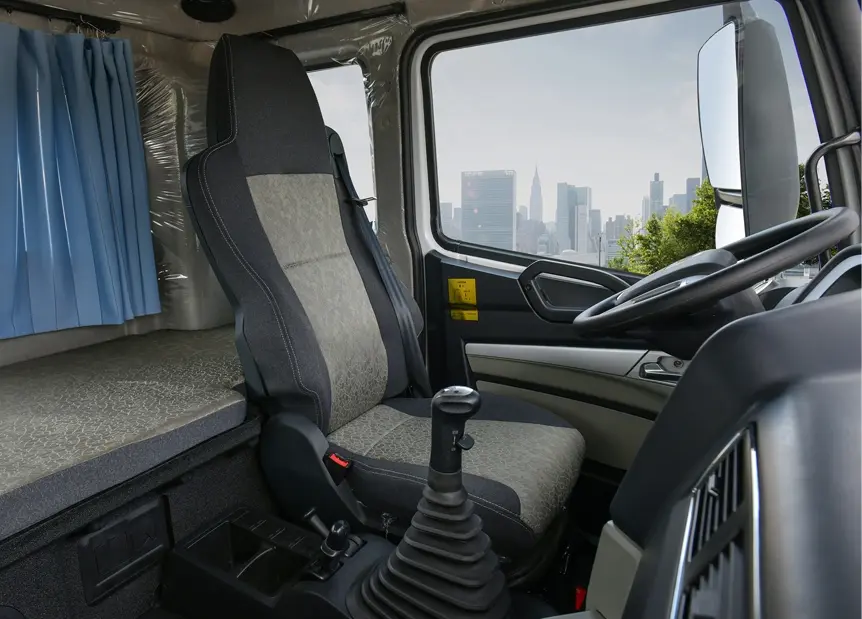

Air Suspension Seat

The air suspension seat allows drivers to quickly find the optimal sitting position. The integrated design of the seat belt and the seat is ergonomically compliant, avoiding the driver's feeling of suffocation caused by emergency braking during driving.

Four-Point Air Suspension

The four-point air suspension provides excellent stability, shock absorption, and comfort, and features a cabin rearward displacement function during collisions, ensuring passenger safety.

Product Applications

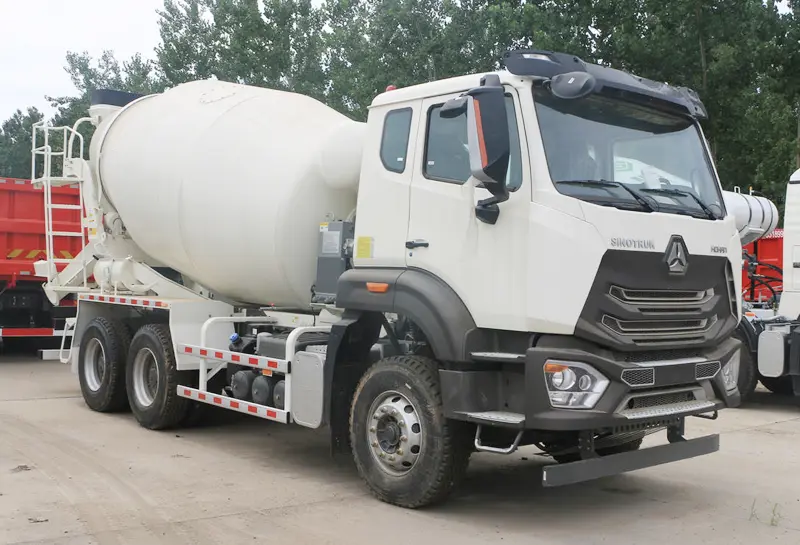

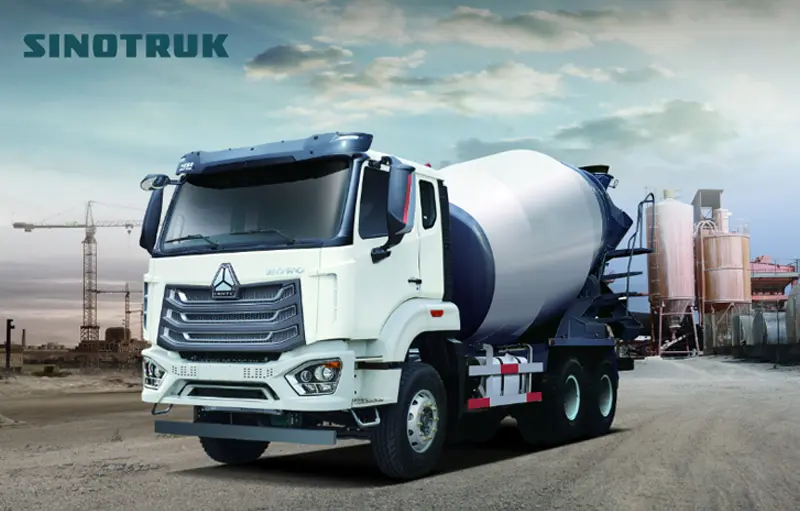

Sinotruk howo NX 380 6x4 mixer truck

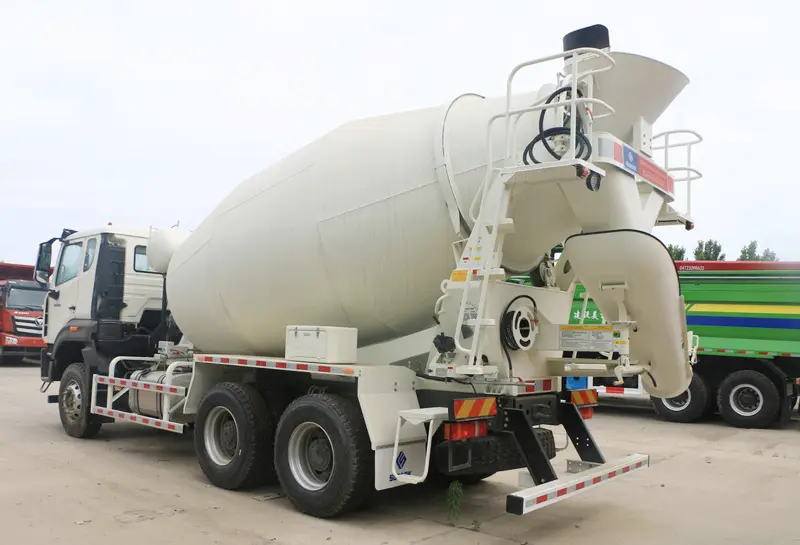

Sinotruk howo NX 380 6x4 mixer truck

SINOTRUK HOWO Heavy Duty Truck

The SINOTRUK HOWO series represents the pinnacle of Chinese heavy-duty truck engineering, combining German MAN technology with superior manufacturing craftsmanship. Designed for exceptional performance, reliability, and economy, the HOWO series has become a preferred choice for logistics and transport operations worldwide.

15%

Fuel Savings

98%

Reliability Rate

25%

More Load Capacity

500k+

Units Sold Globally

Key Features & Advantages

Powerful Engine Performance

Equipped with SINOTRUK's proprietary MC series engines, delivering up to 540 HP and 2500 N·m torque with excellent hill-climbing capability.

Advanced Safety Systems

Comprehensive safety features including ABS+ASR+ESC, lane departure warning, and forward collision warning systems.

Driver-Centered Comfort

Four-point suspended cab, air-suspension seat, multifunction steering wheel, and automatic climate control for reduced driver fatigue.

Eco-Friendly Efficiency

Advanced SCR technology meets China VI emission standards with 5-8% lower fuel consumption than comparable models.

Applications & Use Cases

Long-Distance Logistics

HOWO trucks excel in long-haul transportation with their fuel efficiency and driver comfort features, making them ideal for logistics companies.

Highway Line-haul

Construction

With robust frame structures and exceptional load capacity, HOWO trucks perform reliably in demanding construction environments.

Off-road Heavy load

Cold Chain Logistics

Reliable power systems and precise temperature control compatibility meet strict requirements for perishable goods transportation.

Refrigerated Temperature-controlled

Technology Highlights

SINOTRUK HOWO incorporates cutting-edge technologies that set new standards in the heavy-duty truck industry:

Intelligent Driving System

Advanced driver assistance systems (ADAS) including adaptive cruise control, intelligent braking, and fatigue monitoring.

Connected Vehicle Technology

Real-time vehicle monitoring, remote diagnostics, and fleet management integration for optimized operations.

SINOTRUK Media Gallery

SINOTRUK HOWO series meets international quality and safety standards:

Global Presence & Recognition

SINOTRUK HOWO trucks have gained international recognition and are operating successfully in diverse markets around the world:

Asia-Pacific Markets

Market leader in Southeast Asia with strong presence in Thailand, Vietnam, and Philippines.

African Operations

Extensive service network across Africa with proven performance in challenging conditions.

European Certification

HOWO models meet stringent European standards with growing presence in Eastern European markets.

Customer Testimonials

"Our fleet of 20 HOWO T7H trucks has demonstrated 40% lower failure rate compared to our previous brand, with significantly better fuel economy that reduces our operating costs."

— John Smith, Logistics Manager

"The driver comfort in HOWO trucks is exceptional. The reduced fatigue on long hauls has improved our safety record and driver retention significantly."

— Sarah Johnson, Fleet Owner

"SINOTRUK's after-sales service network is comprehensive. Even in remote areas, we receive prompt technical support and parts availability."

— Robert Chen, Transportation Director

"Our HOWO dump trucks have proven incredibly reliable in harsh construction environments, with excellent load capacity and minimal downtime."

— Michael Brown, Construction Manager

Certifications & Quality Standards

SINOTRUK HOWO series meets international quality and safety standards:

ISO 9001 Certification

International quality management system certification ensuring consistent product quality.

ECE R29 Certification

European safety standard for cab strength and occupant protection.

China VI Emission Standard

Compliance with the latest Chinese emission regulations.

Frequently Asked Questions

What is the maintenance interval for HOWO trucks?

Standard maintenance intervals are 15,000 km for oil changes and 30,000 km for comprehensive servicing, though this may vary based on operating conditions.

What warranty coverage is provided with HOWO trucks?

SINOTRUK offers a comprehensive warranty package including 24 months or 200,000 km coverage (whichever comes first) for the base vehicle and 12 months or 100,000 km for specific components.

How does HOWO compare to European truck brands?

HOWO trucks offer comparable performance and reliability to European brands at a more competitive price point, with lower maintenance costs and excellent parts availability.

What fuel efficiency can I expect from a HOWO truck?

Depending on model and operating conditions, HOWO trucks typically achieve 25-30 liters per 100 km, which is 5-8% better than industry averages for comparable vehicles.
