Sinotruk Howo Container Chassis Trailer

Sinotruk Howo Container Chassis Trailer

Vehicle type
Semi Trailers
Overall dimension
13950*2500*1550mm
Tare weight
6500Kg
Brake Valve
WABCO
Tyre and quantity
12R22.5 , 12 units
Axle brand and number
13 ton , FUWA brand ,3 units
Painting
Optional
Start Order Request
Customer Ratings 4.8 out of 5
Product Introduction
Overview

Sinotruk Howo Container Chassis Trailer main beams are made of super-strong steel casting, which increases the strength by 2 times, and eliminates the side panels for a lighter body. Vehicle warranty of 2 years, 12 performance tests of the whole vehicle and key components to ensure driving safety.

A major change in the Sinotruk Howo Container Chassis Trailer is the different way the trailer legs are mounted. Instead of attaching the trailer’s outriggers directly to the beams, a tripod is placed underneath the beams so that the outriggers have a greater point of attachment to the force. As a result, the trailer will be more stable when parked alone and its service life will be further improved.

Sinotruk Howo Container Chassis Trailer In terms of light weight, Sinotruk Howo Container Chassis Trailer adopts aluminum alloy fence, aluminum alloy tool box and aluminum alloy fenders to reduce the weight and chooses the antilock braking system, which greatly improves the service life of tires.

Lower loading surface: Sinotruk Howo Container Chassis Trailer frame adopts special small gooseneck structure, which greatly reduces the height of the loading surface and the center of gravity of the cargo, facilitates the transportation and improves the driving safety of the vehicle.

Sinotruk Howo Container Chassis Trailer

Sinotruk Howo Container Chassis Trailer also named 45ft skeletal semi trailer, container chassis trailer etc. Sinotruk Howo Container Chassis Trailer are generally used for transport ISO containers in port, shipyard, routes, bridges, tunnels, transfer station, supporting multimodal transport logistics system. 45ft long fit 4 to 14 sets container locks suitable for 45′ dry container, tank container and reefer container etc.

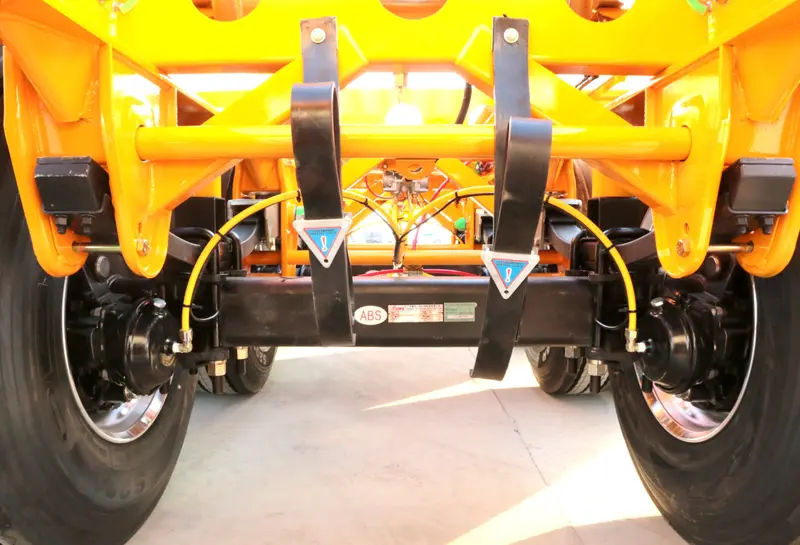

sinotruk howo container chassis trailer-4
Specification
Semi Trailer Sinotruk Howo Container Chassis Trailer
Dimension 13950*2500*1550mm
Height 1550mm
Width 2500mm
Skeletal trailer weight 6500Kg
Main Beam “I” Section 500mm height Q345/T700 material
Twist-Lock 12/14 set  ISO Standard
Suspension Mechanical / Air / Bogie
Axle 3 axles BPW/FUWA/PDME etc
Rim 8/12/16 pieces 9.0-22.5 Steel/Aluminum
Tire 8/12/16 pieces 12R22.5 Bridgestone/Triangle/Linglong etc
Brake Valve WABCO
Brake Chamber 4/6 sets T30/30
Air Tank 28L
Brake Pipe Nylon Wire Pipe
Landing Gear 28T Lifting JOST/YAHUA
Kingpin 2″(50mm)/3.5″(90mm) JOST Bolting Type
Lights 12v/24v LED Waterproof
Color Customized
Product Applications

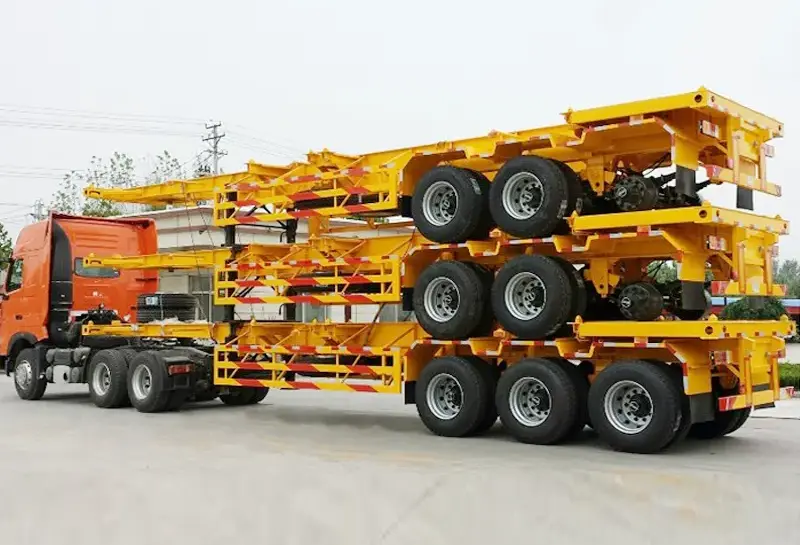

sinotruk howo container chassis trailer-2
Sinotruk Howo Container Chassis Trailer

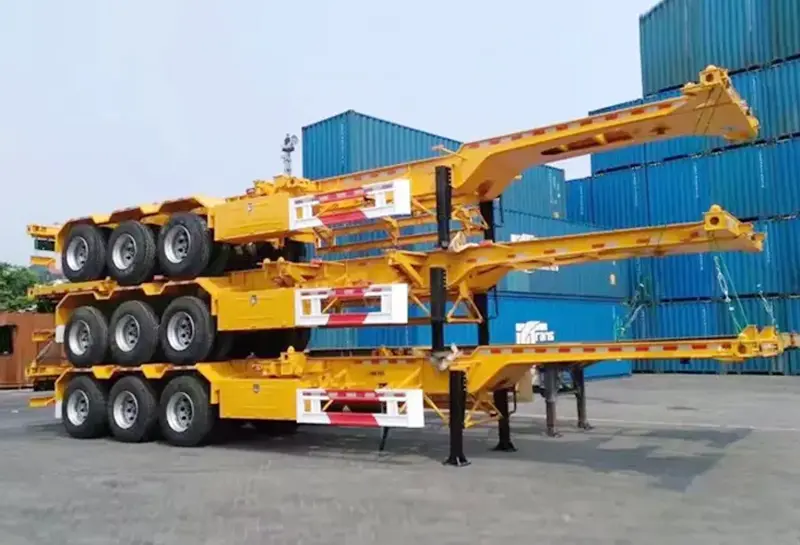

sinotruk howo container chassis trailer-1
Sinotruk Howo Container Chassis Trailer
sinotruk howo container chassis trailer
Sinotruk Howo Container Chassis Trailer

SINOTRUK HOWO Heavy Duty Truck

The SINOTRUK HOWO series represents the pinnacle of Chinese heavy-duty truck engineering, combining German MAN technology with superior manufacturing craftsmanship. Designed for exceptional performance, reliability, and economy, the HOWO series has become a preferred choice for logistics and transport operations worldwide.

15%
Fuel Savings
98%
Reliability Rate
25%
More Load Capacity
500k+
Units Sold Globally

Key Features & Advantages

Powerful Engine Performance

Equipped with SINOTRUK's proprietary MC series engines, delivering up to 540 HP and 2500 N·m torque with excellent hill-climbing capability.

Advanced Safety Systems

Comprehensive safety features including ABS+ASR+ESC, lane departure warning, and forward collision warning systems.

Driver-Centered Comfort

Four-point suspended cab, air-suspension seat, multifunction steering wheel, and automatic climate control for reduced driver fatigue.

Eco-Friendly Efficiency

Advanced SCR technology meets China VI emission standards with 5-8% lower fuel consumption than comparable models.

Applications & Use Cases

Long-Distance Logistics

HOWO trucks excel in long-haul transportation with their fuel efficiency and driver comfort features, making them ideal for logistics companies.

Highway Line-haul
Construction

With robust frame structures and exceptional load capacity, HOWO trucks perform reliably in demanding construction environments.

Off-road Heavy load
Cold Chain Logistics

Reliable power systems and precise temperature control compatibility meet strict requirements for perishable goods transportation.

Refrigerated Temperature-controlled

Technology Highlights

SINOTRUK HOWO incorporates cutting-edge technologies that set new standards in the heavy-duty truck industry:

Intelligent Driving System

Advanced driver assistance systems (ADAS) including adaptive cruise control, intelligent braking, and fatigue monitoring.

Connected Vehicle Technology

Real-time vehicle monitoring, remote diagnostics, and fleet management integration for optimized operations.

SINOTRUK Media Gallery

SINOTRUK HOWO series meets international quality and safety standards:

Global Presence & Recognition

SINOTRUK HOWO trucks have gained international recognition and are operating successfully in diverse markets around the world:

Asia-Pacific Markets

Market leader in Southeast Asia with strong presence in Thailand, Vietnam, and Philippines.

African Operations

Extensive service network across Africa with proven performance in challenging conditions.

European Certification

HOWO models meet stringent European standards with growing presence in Eastern European markets.

Customer Testimonials

"Our fleet of 20 HOWO T7H trucks has demonstrated 40% lower failure rate compared to our previous brand, with significantly better fuel economy that reduces our operating costs."

— John Smith, Logistics Manager

"The driver comfort in HOWO trucks is exceptional. The reduced fatigue on long hauls has improved our safety record and driver retention significantly."

— Sarah Johnson, Fleet Owner

"SINOTRUK's after-sales service network is comprehensive. Even in remote areas, we receive prompt technical support and parts availability."

— Robert Chen, Transportation Director

"Our HOWO dump trucks have proven incredibly reliable in harsh construction environments, with excellent load capacity and minimal downtime."

— Michael Brown, Construction Manager

Certifications & Quality Standards

SINOTRUK HOWO series meets international quality and safety standards:

ISO 9001 Certification

International quality management system certification ensuring consistent product quality.

ECE R29 Certification

European safety standard for cab strength and occupant protection.

China VI Emission Standard

Compliance with the latest Chinese emission regulations.

Frequently Asked Questions

What is the maintenance interval for HOWO trucks?

Standard maintenance intervals are 15,000 km for oil changes and 30,000 km for comprehensive servicing, though this may vary based on operating conditions.

What warranty coverage is provided with HOWO trucks?

SINOTRUK offers a comprehensive warranty package including 24 months or 200,000 km coverage (whichever comes first) for the base vehicle and 12 months or 100,000 km for specific components.

How does HOWO compare to European truck brands?

HOWO trucks offer comparable performance and reliability to European brands at a more competitive price point, with lower maintenance costs and excellent parts availability.

What fuel efficiency can I expect from a HOWO truck?

Depending on model and operating conditions, HOWO trucks typically achieve 25-30 liters per 100 km, which is 5-8% better than industry averages for comparable vehicles.
