Sinotruk Howo End Dump Semi Trailer

Sinotruk Howo End Dump Semi Trailer

Vehicle type
Semi Trailers
Overall dimension
9000*2500*3800mm
Tare weight
9000kg
Payload
60T
Tyre and quantity
12R22.5 , 12 units
Axle brand and number
13 ton , FUWA brand ,3 units
Painting
Optional
Start Order Request
Customer Ratings 4.8 out of 5
Product Introduction
Overview

The main features and advantages of the Sinotruk Howo End Dump Semi Trailer are as follows:

1. convenient and quick unloading speed, which can increase productivity and efficiency.

2. High load capacity for transportation of large quantities of goods.

3. Suitable for all types of materials, making it a versatile and efficient choice.

4.  Rugged and durable construction ensures long-term use even in harsh environments.

Sinotruk Howo End Dump Semi Trailer have several advantages over side tilt trailers:

1. Rear tipping trailers distribute weight better, making them more stable and less likely to tip over.

2.  Rear tipping trailers can be unloaded in tight spaces, making them ideal for use in confined areas.

In conclusion, Sinotruk Howo End Dump Semi Trailer is a must-have for any industry that needs to transport heavy goods and materials. Sinotruk Howo End Dump Semi Trailer is versatile, efficient and reliable, saving users time and effort. Using this type of trailer reduces the need for labor and ensures that goods are safely unloaded. For those who need a reliable, efficient and durable trailer, a rear dump trailer is the best choice.

The process of Sinotruk Howo End Dump Semi Trailer is straightforward. When Sinotruk Howo End Dump Semi Trailer is loaded with material, the hydraulic system is activated, lifting and tilting the trailer bed backwards, allowing the material to slide out of the trailer bed. The unloading process can be controlled by the operator via a remote control or manual lever for precise and safe unloading.

Sinotruk Howo End Dump Semi Trailer is usually a towing trailer with one or more hydraulic cylinders at the front or rear end that lifts the trailer and quickly unloads the contents into a designated area.

Sinotruk Howo End Dump Semi Trailer

Widely used in construction sites, mining operations, farms and waste facilities, Sinotruk Howo End Dump Semi Trailer save time, labor and resources by efficiently transporting and handling bulk materials. Sinotruk Howo End Dump Semi Trailer is a versatile and reliable piece of equipment that can handle tasks ranging from aggregate transportation to excavation and demolition work.

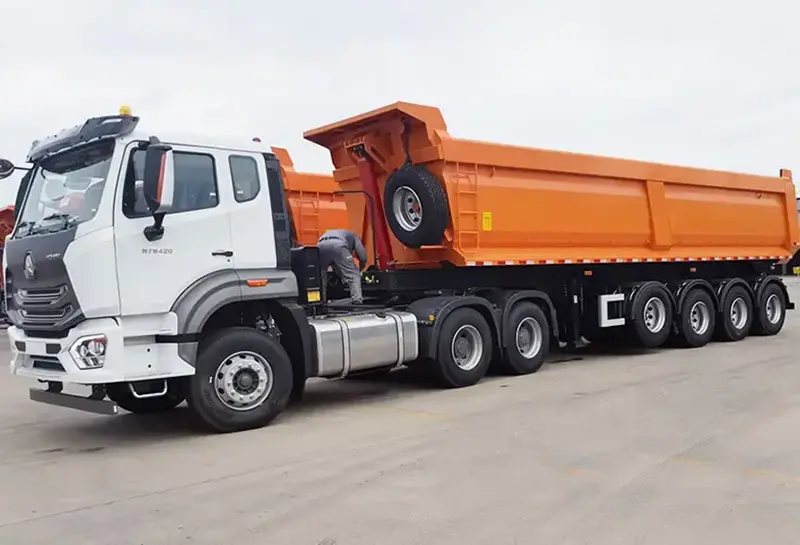

sinotruk howo end dump semi trailer-3
Specification
Semi Trailer Name Sinotruk Howo End Dump Semi Trailer
Tare weight 9000kg
Size 9000mm*2500mm*3800mm
Payload 60T
Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam no
Cross member channel steel
Floor 4-8mm
Side wall 4-6mm
Axle 3 axle  FUWA  brand  13
Suspension Mechanical suspension
Leafspring 10pcs*16mm*90mm
Tire 12.00R20  double star brand  12pcs
Wheel rim 8.520  jingu brand      12pcs
Kingpin 2 bolt-in king pin
Landing gear two-speed, manual operating ,heavy duty landing gear 28T
Cylinder HYVA brand or china famouse brand
Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS optional
Light LED 8 side lights and 2 rear lights 2 width lamp
Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Product Applications

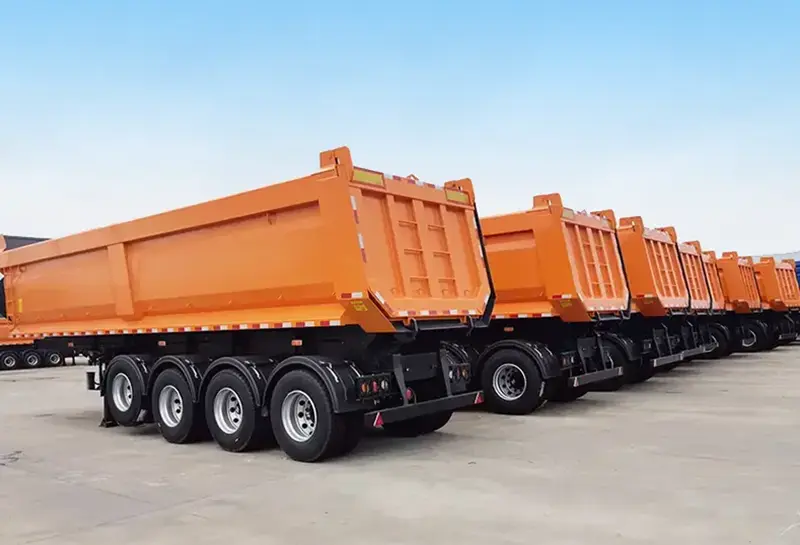

sinotruk howo end dump semi trailer-2
Sinotruk Howo End Dump Semi Trailer
sinotruk howo end dump semi trailer-3
Sinotruk Howo End Dump Semi Trailer
sinotruk howo end dump semi trailer
Sinotruk Howo End Dump Semi Trailer
