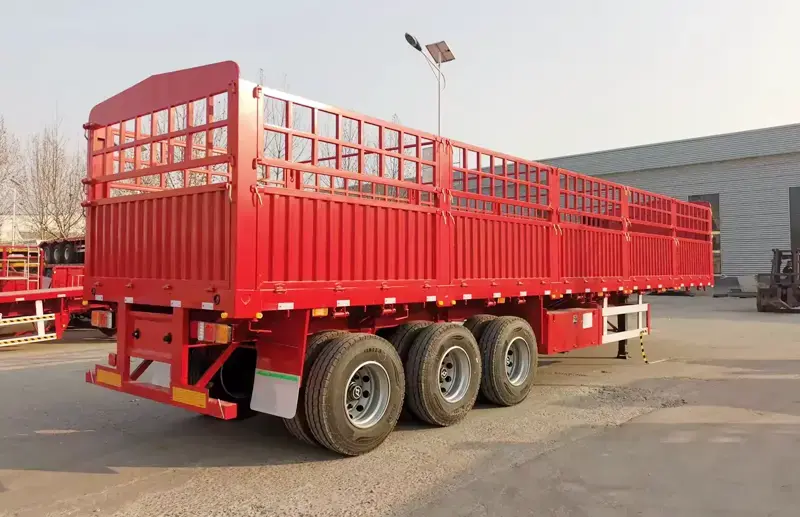

Sinotruk Howo Fence Cargo Semi Trailer

Vehicle type

Semi Trailers

Overall dimension

12500*2500*1600mm

Tare weight

6500kg

Loading Weight

60000kg

Tyre and quantity

12R22.5 , 12 units

Axle brand and number

13 ton , FUWA brand ,3 units

Painting

Optional

Start Order Request

Customer Ratings 4.8 out of 5

Sinotruk Howo fence cargo semi trailer-2

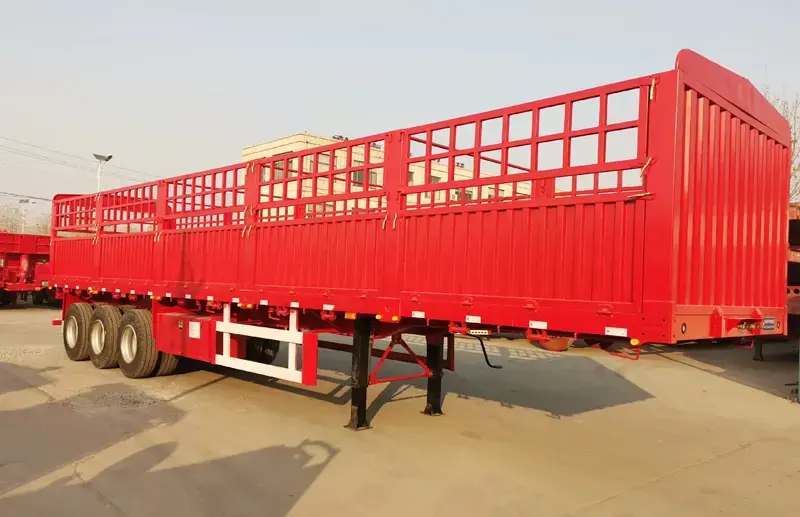

Sinotruk Howo fence cargo semi trailer-1

Product Introduction

Overview

Sinotruk Howo Fence Cargo Semi Trailer main feature is the side walls that run along the length of the trailer. Often made of steel or aluminum, these walls not only provide structural strength, but also provide added security for the cargo being transported.

Sinotruk Howo Fence Cargo Semi Trailer are versatile and can be used in a variety of environments including rural and urban areas. They are commonly used to transport goods such as construction materials, agricultural products and general cargo. These Sinotruk Howo Fence Cargo Semi Trailer are designed to withstand harsh weather conditions, making them suitable for use in areas with extreme temperatures or rough terrain.

Sinotruk Howo Fence Cargo Semi Trailer have a typical loading capacity of 20 to 40 tons. This makes them ideal for transporting everything from small packages to large construction materials. The Sinotruk Howo Fence Cargo Semi Trailer also allow for loading and unloading of cargo from the side, making loading and unloading easier.

Sinotruk Howo Fence Cargo Semi Trailer

Sinotruk Howo Fence Cargo Semi Trailerare popular all over the world, but they are especially prevalent in countries with a strong construction industry, such as China, India and the United States. In these countries, these Sinotruk Howo Fence Cargo Semi Trailer are commonly used to transport construction materials such as cement, bricks and steel beams. They are also used to transport agricultural products such as grain and livestock.

Specification

Trailer Model	Sinotruk Howo Fence Cargo Semi Trailer for sale
Specifications
Overall Dimension (Lx W x H)(mm)	1250025001600+600mm
Tare Weight(KG)	6500
Loading Weight( KG)	60000
Wheel Base(mm)	7450mm+1310mm+1310mm
Semi Trailer Chassis
Platform plate	3mm Diamond plate
The material of Main beam	Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Side beam	Q235 16# channel steel
Axle Brand	13TON Axle FUWA Brand
Axle Number	Three
Suspension system	Mechanical Suspension
Leaf spring	90(W)mm13(Thick)mm10 Layer
Landing Gear	28ton Chinese brand,double speeds
Tire Type and quantity	12R22.5 12units
Wheel Rim	9.00-22.5
Traction Pin	2” or 3.5”
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Electrical & Paint
Brake system	Dual Line braking system
Brake air chamber	Six double chamber
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Painting	Color as customer’s requirement
Packing&Shipping
Packing	Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint
Delivery way	Transfer to Qingdao/Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.

Product Applications

Sinotruk Howo Fence Cargo Semi Trailer

SINOTRUK HOWO Heavy Duty Truck

The SINOTRUK HOWO series represents the pinnacle of Chinese heavy-duty truck engineering, combining German MAN technology with superior manufacturing craftsmanship. Designed for exceptional performance, reliability, and economy, the HOWO series has become a preferred choice for logistics and transport operations worldwide.

15%

Fuel Savings

98%

Reliability Rate

25%

More Load Capacity

500k+

Units Sold Globally

Key Features & Advantages

Powerful Engine Performance

Equipped with SINOTRUK's proprietary MC series engines, delivering up to 540 HP and 2500 N·m torque with excellent hill-climbing capability.

Advanced Safety Systems

Comprehensive safety features including ABS+ASR+ESC, lane departure warning, and forward collision warning systems.

Driver-Centered Comfort

Four-point suspended cab, air-suspension seat, multifunction steering wheel, and automatic climate control for reduced driver fatigue.

Eco-Friendly Efficiency

Advanced SCR technology meets China VI emission standards with 5-8% lower fuel consumption than comparable models.

Applications & Use Cases

Long-Distance Logistics

HOWO trucks excel in long-haul transportation with their fuel efficiency and driver comfort features, making them ideal for logistics companies.

Highway Line-haul

Construction

With robust frame structures and exceptional load capacity, HOWO trucks perform reliably in demanding construction environments.

Off-road Heavy load

Cold Chain Logistics

Reliable power systems and precise temperature control compatibility meet strict requirements for perishable goods transportation.

Refrigerated Temperature-controlled

Technology Highlights

SINOTRUK HOWO incorporates cutting-edge technologies that set new standards in the heavy-duty truck industry:

Intelligent Driving System

Advanced driver assistance systems (ADAS) including adaptive cruise control, intelligent braking, and fatigue monitoring.

Connected Vehicle Technology

Real-time vehicle monitoring, remote diagnostics, and fleet management integration for optimized operations.

SINOTRUK Media Gallery

SINOTRUK HOWO series meets international quality and safety standards:

Global Presence & Recognition

SINOTRUK HOWO trucks have gained international recognition and are operating successfully in diverse markets around the world:

Asia-Pacific Markets

Market leader in Southeast Asia with strong presence in Thailand, Vietnam, and Philippines.

African Operations

Extensive service network across Africa with proven performance in challenging conditions.

European Certification

HOWO models meet stringent European standards with growing presence in Eastern European markets.

Customer Testimonials

"Our fleet of 20 HOWO T7H trucks has demonstrated 40% lower failure rate compared to our previous brand, with significantly better fuel economy that reduces our operating costs."

— John Smith, Logistics Manager

"The driver comfort in HOWO trucks is exceptional. The reduced fatigue on long hauls has improved our safety record and driver retention significantly."

— Sarah Johnson, Fleet Owner

"SINOTRUK's after-sales service network is comprehensive. Even in remote areas, we receive prompt technical support and parts availability."

— Robert Chen, Transportation Director

"Our HOWO dump trucks have proven incredibly reliable in harsh construction environments, with excellent load capacity and minimal downtime."

— Michael Brown, Construction Manager

Certifications & Quality Standards

SINOTRUK HOWO series meets international quality and safety standards:

ISO 9001 Certification

International quality management system certification ensuring consistent product quality.

ECE R29 Certification

European safety standard for cab strength and occupant protection.

China VI Emission Standard

Compliance with the latest Chinese emission regulations.

Frequently Asked Questions

What is the maintenance interval for HOWO trucks?

Standard maintenance intervals are 15,000 km for oil changes and 30,000 km for comprehensive servicing, though this may vary based on operating conditions.

What warranty coverage is provided with HOWO trucks?

SINOTRUK offers a comprehensive warranty package including 24 months or 200,000 km coverage (whichever comes first) for the base vehicle and 12 months or 100,000 km for specific components.

How does HOWO compare to European truck brands?

HOWO trucks offer comparable performance and reliability to European brands at a more competitive price point, with lower maintenance costs and excellent parts availability.

What fuel efficiency can I expect from a HOWO truck?

Depending on model and operating conditions, HOWO trucks typically achieve 25-30 liters per 100 km, which is 5-8% better than industry averages for comparable vehicles.
