Home > Models > Special Vehicles > Sinotruk Howo 7 6x4 Water Truck

Sinotruk Howo 7 6x4 Water Truck

Sinotruk Howo 7 6x4 Water Truck

Vehicle type
Special Vehicles
Model
ZZ1257N4347D1B
Engine
WP12.400E201
Transmission
HW19710, 10F & 2R
Overall Dimension
9800*2500*3350mm
Fuel Tank
400L
Drive type
6x4
Start Order Request
Customer Ratings 4.8 out of 5
Product Introduction
Overview

The Sinotruk Howo 7 6×4 water truck is an efficient vehicle designed for urban and rural water transportation. With a 6×4 drive, it has the power and stability to maneuver smoothly in all kinds of complex road conditions.The Sinotruk Howo 7 water truck has a large water tank capacity, typically up to 10 cubic meters or more, to meet large-scale irrigation, firefighting and cleaning needs.

Whether it is on the road in the city or in the field in the countryside, the Sinotruk Howo 7 6×4 water truck works excellently and is ideal for all types of water transportation. Its reliable performance and economical operating costs make it the first choice for many users.

Sinotruk Howo 7 6x4 Water Truck

Equipped with a state-of-the-art pumping system, the Sinotruk Howo 7 6×4 water truck is able to fill and drain quickly and efficiently, which greatly improves work efficiency. In addition, the Sinotruk Howo 7 6×4 water truck has a well-designed body with good durability and corrosion resistance, ensuring good performance over a long period of use.

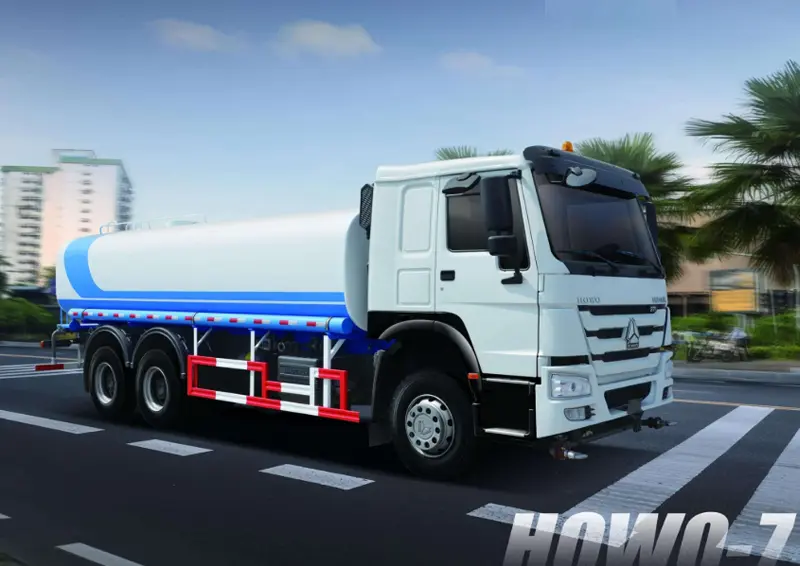

sinotruk howo 7 6×4 Water Truck-1
Parameters

Sinotruk Howo 7 6×4 Water Truck

Chassis Model

ZZ1257N4347D1B

Driving Type

LHD (RHD is optional)

Cabin

HW76 cab, with one sleeper, two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.

Engine

Make: WICHAI

Diesel 4-stroke direct injection diesel engine

Engine model: WP12.400E201, Euro II, 400 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 11.596 L

Transmission

HW19710, 10F & 2R

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, model ZF8118, hydraulic steering with power assistance

Front Axle

VGD95, 1×9000 KGS

Steering with double T-cross section beam

Rear Axle

HC16, 2×16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio:4.42

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, Radial tires with one spare tire

Fuel Tank

400L

Tank Body

Capacity: 20 Cubic Meters, 20,000 Liters

Front and Rear sprinkling system

High Press Water Jet. Turning Lights

Overall Dimension

9800*2500*3350mm

Product Advantages

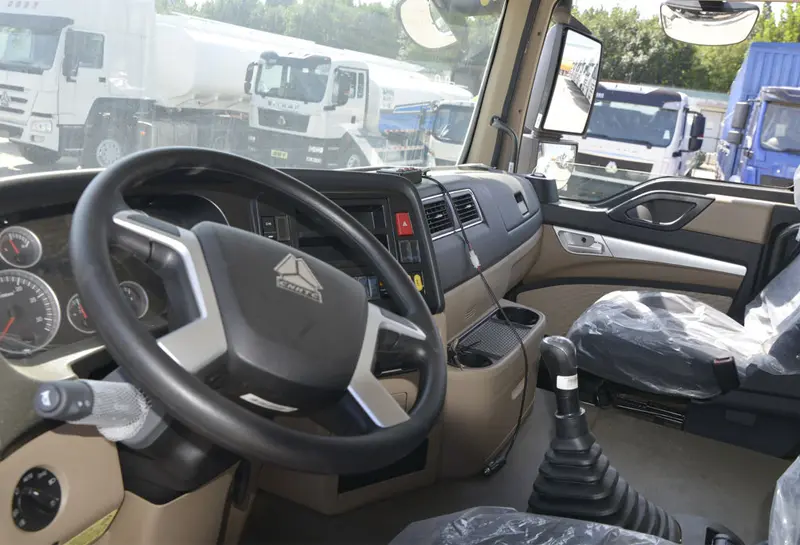

howo sinotruk 290 water trucks for sale-6
Cab Configuration
Seat: Mechanical shock-absorbing seat, supporting multi-directional adjustment
Instrument panel: digital display, integrated water temperature, oil pressure and other real-time monitoring functions
Safety configuration: standard with reverse radar, crash bars and other safety devices

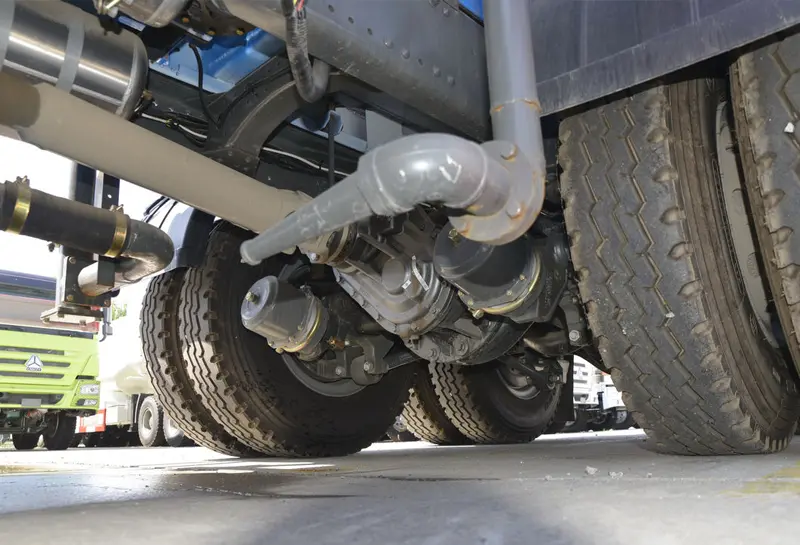

howo sinotruk 290 water trucks for sale-7
Power System
With its power, capacity, reliability and adaptability advantages, HOWO TX 290 hp 6X4 sprinkler has become an ideal choice for urban sanitation and engineering construction, taking into account the efficiency and economy, and helping users to improve operational efficiency.

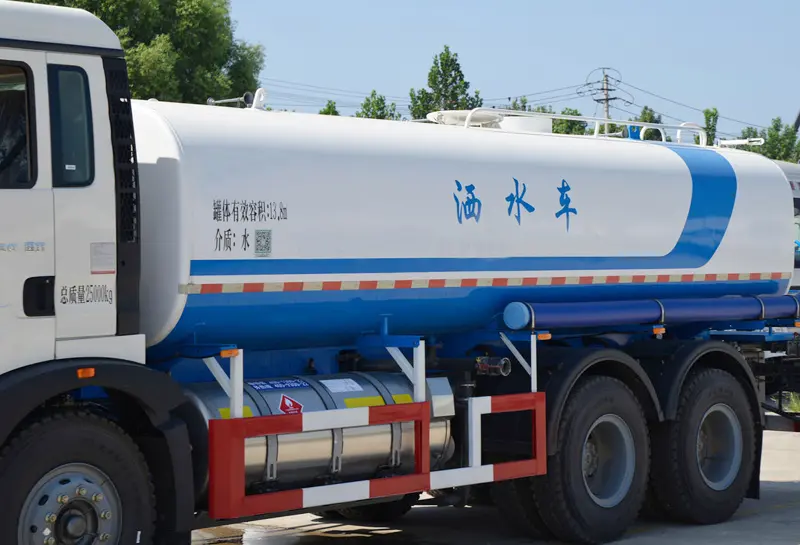

howo sinotruk 290 water trucks for sale-8
Tank and capacity
Tank volume: 20 cubic meters (about 20,000 liters), made of high-strength corrosion-resistant steel
Spraying system: high-pressure water pump with multi-mode spray nozzles (front-flush, rear-sprinkler, and side-sprinkler), covering a width of up to 15 meters

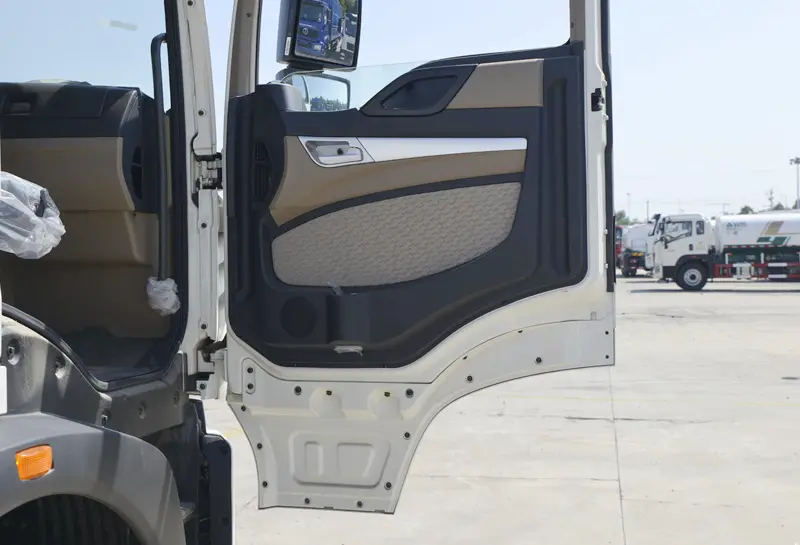

howo sinotruk 290 water trucks for sale-9
Performance indicators
Maximum speed: 89km/h220
Braking system: air brake, standard ABS anti-locking system
Tire specification: 12.00R20 radial tires, enhanced grip

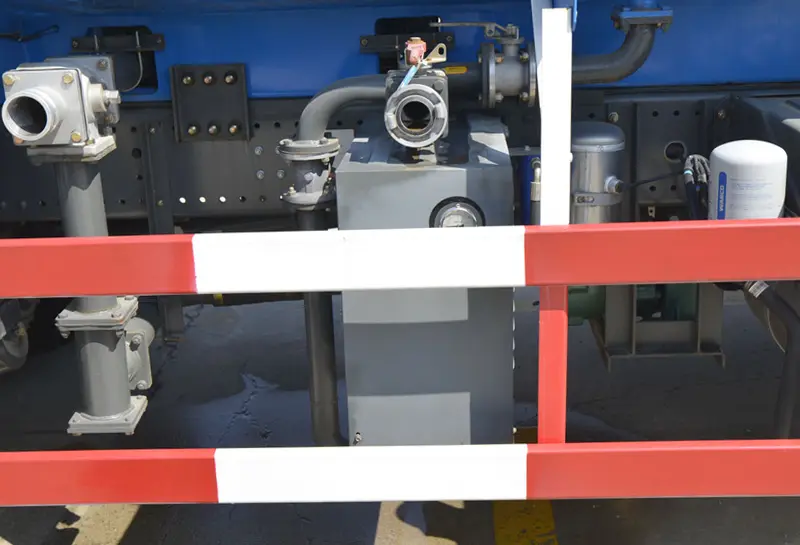

howo sinotruk 290 water trucks for sale-10
Chassis and drive
Drive form: 6X4 three-axle rear double axle drive, 10-wheel design, adapting to complex road conditions.
Steering system: ZF8118 hydraulic power steering, light and precise operation.
Rear axle speed ratio: 4.42 double-stage reduction axle, taking into account the power and fuel efficiency.
Product Applications

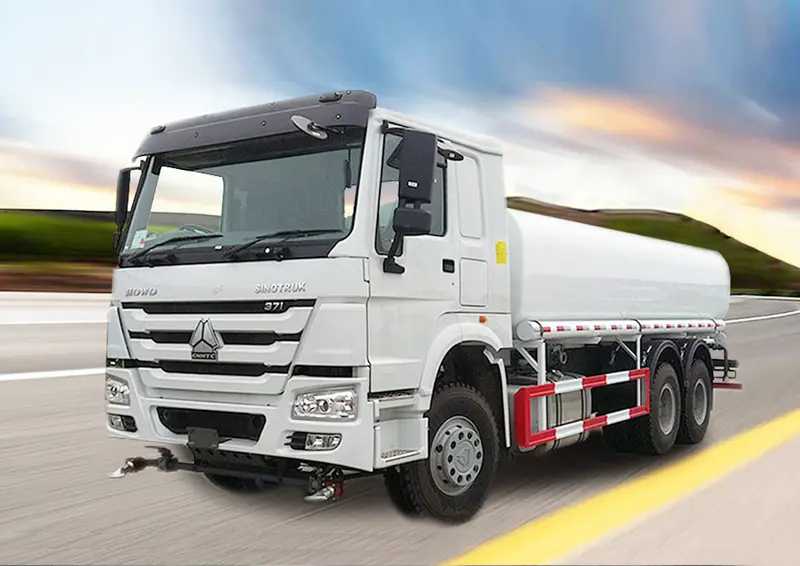

sinotruk howo 7 6×4 Water Truck-2
Sinotruk Howo 7 6x4 Water Truck
sinotruk howo 7 6×4 Water Truck-1
Sinotruk Howo 7 6x4 Water Truck
sinotruk howo 7 6×4 Water Truck
Sinotruk Howo 7 6x4 Water Truck

SINOTRUK HOWO Heavy Duty Truck

The SINOTRUK HOWO series represents the pinnacle of Chinese heavy-duty truck engineering, combining German MAN technology with superior manufacturing craftsmanship. Designed for exceptional performance, reliability, and economy, the HOWO series has become a preferred choice for logistics and transport operations worldwide.

15%
Fuel Savings
98%
Reliability Rate
25%
More Load Capacity
500k+
Units Sold Globally

Key Features & Advantages

Powerful Engine Performance

Equipped with SINOTRUK's proprietary MC series engines, delivering up to 540 HP and 2500 N·m torque with excellent hill-climbing capability.

Advanced Safety Systems

Comprehensive safety features including ABS+ASR+ESC, lane departure warning, and forward collision warning systems.

Driver-Centered Comfort

Four-point suspended cab, air-suspension seat, multifunction steering wheel, and automatic climate control for reduced driver fatigue.

Eco-Friendly Efficiency

Advanced SCR technology meets China VI emission standards with 5-8% lower fuel consumption than comparable models.

Applications & Use Cases

Long-Distance Logistics

HOWO trucks excel in long-haul transportation with their fuel efficiency and driver comfort features, making them ideal for logistics companies.

Highway Line-haul
Construction

With robust frame structures and exceptional load capacity, HOWO trucks perform reliably in demanding construction environments.

Off-road Heavy load
Cold Chain Logistics

Reliable power systems and precise temperature control compatibility meet strict requirements for perishable goods transportation.

Refrigerated Temperature-controlled

Technology Highlights

SINOTRUK HOWO incorporates cutting-edge technologies that set new standards in the heavy-duty truck industry:

Intelligent Driving System

Advanced driver assistance systems (ADAS) including adaptive cruise control, intelligent braking, and fatigue monitoring.

Connected Vehicle Technology

Real-time vehicle monitoring, remote diagnostics, and fleet management integration for optimized operations.

SINOTRUK Media Gallery

SINOTRUK HOWO series meets international quality and safety standards:

Global Presence & Recognition

SINOTRUK HOWO trucks have gained international recognition and are operating successfully in diverse markets around the world:

Asia-Pacific Markets

Market leader in Southeast Asia with strong presence in Thailand, Vietnam, and Philippines.

African Operations

Extensive service network across Africa with proven performance in challenging conditions.

European Certification

HOWO models meet stringent European standards with growing presence in Eastern European markets.

Customer Testimonials

"Our fleet of 20 HOWO T7H trucks has demonstrated 40% lower failure rate compared to our previous brand, with significantly better fuel economy that reduces our operating costs."

— John Smith, Logistics Manager

"The driver comfort in HOWO trucks is exceptional. The reduced fatigue on long hauls has improved our safety record and driver retention significantly."

— Sarah Johnson, Fleet Owner

"SINOTRUK's after-sales service network is comprehensive. Even in remote areas, we receive prompt technical support and parts availability."

— Robert Chen, Transportation Director

"Our HOWO dump trucks have proven incredibly reliable in harsh construction environments, with excellent load capacity and minimal downtime."

— Michael Brown, Construction Manager

Certifications & Quality Standards

SINOTRUK HOWO series meets international quality and safety standards:

ISO 9001 Certification

International quality management system certification ensuring consistent product quality.

ECE R29 Certification

European safety standard for cab strength and occupant protection.

China VI Emission Standard

Compliance with the latest Chinese emission regulations.

Frequently Asked Questions

What is the maintenance interval for HOWO trucks?

Standard maintenance intervals are 15,000 km for oil changes and 30,000 km for comprehensive servicing, though this may vary based on operating conditions.

What warranty coverage is provided with HOWO trucks?

SINOTRUK offers a comprehensive warranty package including 24 months or 200,000 km coverage (whichever comes first) for the base vehicle and 12 months or 100,000 km for specific components.

How does HOWO compare to European truck brands?

HOWO trucks offer comparable performance and reliability to European brands at a more competitive price point, with lower maintenance costs and excellent parts availability.

What fuel efficiency can I expect from a HOWO truck?

Depending on model and operating conditions, HOWO trucks typically achieve 25-30 liters per 100 km, which is 5-8% better than industry averages for comparable vehicles.
